CBB60 450V 6.0mfd Water Pump Motor Capacitor With ±5% Tolerance
CBB60 450V 6.0UF Water Pump Motor Capacitor With ±5% Tolerance
The Water Pump Motor Capacitor is a reliable and high-performance pump motor starter designed to help optimize the performance of water pumps. It is a run capacitor pump motor which is composed of a start capacitor and a run capacitor.
Applications
Mainly suitable for 50/60HZ power supply, especially water pump motor, laundry. Machine and other ideal supporting components for motors to help single-phase AC motors start and run.
Basic Info.(Techical Parameters)
|
Rated frequency |
50/60Hz |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
6.0UF |
|
|
Capacitance tolerance |
±5% |
|
|
Lifetime |
10000 hours | |
|
Size |
Φ35mm*57mm(1-3/8in*2-1/4in) |
|
|
Operating temperature range |
-40℃~+85℃(40/85/21) | |

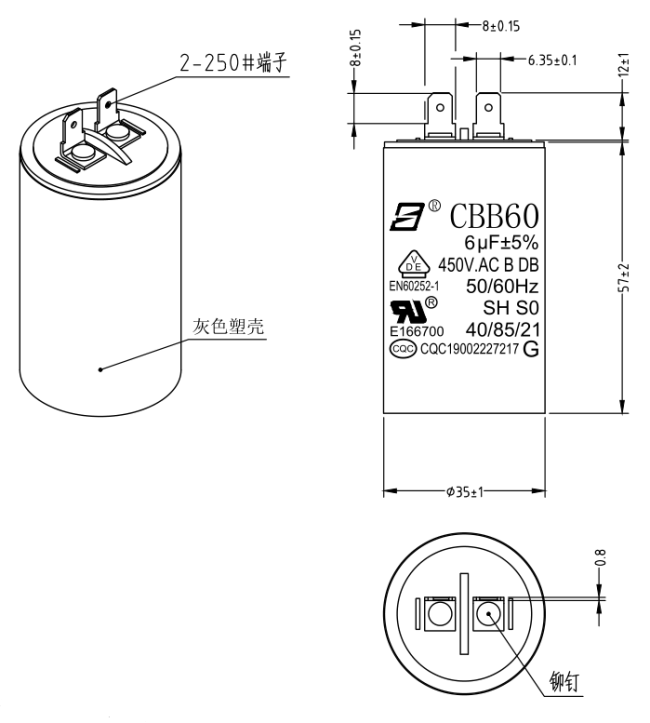

Outline Drawing(35mm=1-3/8in,57mm=2-1/4in)
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Workshop and Transport
Why Choose XWD-XD Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
