CBB60 250V 22UF Capacitor Washing Machine Capacitor Self-Healing 3000 Hours
CBB60 250V 22UF Capacitor Washing Machine Capacitor Self-Healing 3000 Hours
The Water Pump Motor Capacitor is a reliable pump motor starter which provides a long-lasting life expectancy of up to 3000h-10000h. It features a lead wire terminal with a leads length of 60mm, and it is made of a C-class material. The temperature range of this water pump motor starter can be as low as -25℃ and as high as +70℃.
Applications
It is suitable for various water pump units due to its high performance and efficiency. This water pump motor capacitor is designed for use in a variety of water pump applications, such as industrial and commercial water pump systems.
Basic Info.(Techical Parameters)
|
Rated frequency |
50/60Hz |
|
|
Rated Voltage |
250V.AC |
|
|
Capacitance Range |
22UF |
|
|
Capacitance tolerance |
±5% |
|
|
Lifetime |
3000 hours | |
|
Size |
Φ30mm*70mm(1-3/16in*2-3/4in) |
|
|
Operating temperature range |
-25℃~70℃(-25/70/21) | |
| Operation temperature range | -40℃~+105℃(40170121 40/85121 40/105/21) |
| Rated Voltage | 250V.AC-600V.AC |
| Capacitance Range | 3uF~120uF |
| Capacitance tolerance | ±5% (J),±10%(K) |
| Tangent of loss angle(20℃) | ≤0.0010(at 100Hz) |
| Insulation resistance | Rc>5000s(100V.DC 60s) |
| Flammability | UL94V-0 |
| Operation life time | 3000H(C Class)at 70℃/10000H(B Class) at 85℃ /30000H(A Class)at 85℃ |
| Withstand voltage | 2.0Un (VAC)/60s(CQC, VDE, TUV) |
| 1.5Un (VAC)/60s (UL) | |
| 2.0Un+1000(VAC)/60s(≥2000VAC) | |
| Class of safety protection | UL VDE CQC(SO) / UL TUV CQC(S3) |

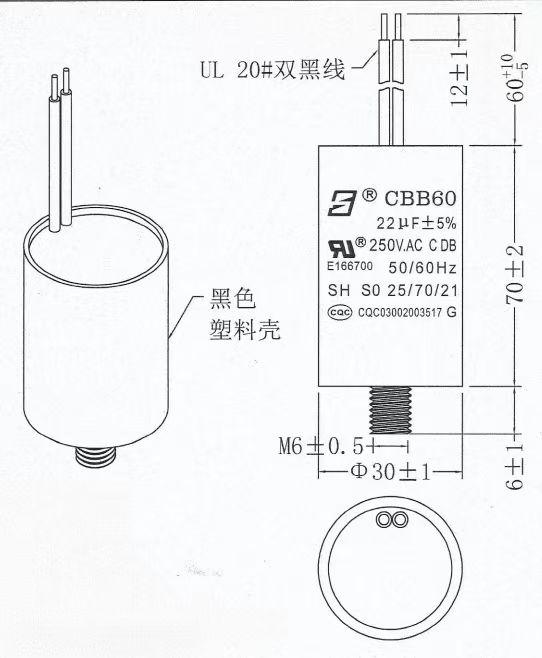

Outline Drawing(30mm=1-3/16in,70mm=2-3/4in)
