CBB60 450V 12UF AC Motor Run Capacitor Film Capacitor Air Conditioner RoHS
CBB60 450V 12UF AC Motor Run Capacitor Film Capacitor Air Conditioner RoHS
This Water Pump Motor Capacitor is a Run Capacitor Unit designed for Water Pump Units. It is a Motor Capacitor with a long life expectancy, ranging from 3000h to 10000h.
Applications
It is a highly efficient capacitor that can be used for a variety of water pump motor starters and water pump unit controllers. It is perfect for use in applications such as water pump motor starters, water pump unit controllers, water pump motors, and other water pump motor applications.
Basic Info.(Techical Parameters)
|
Rated frequency |
50/60Hz |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
12UF |
|
|
Capacitance tolerance |
±5% |
|
|
Lifetime |
3000 hours | |
|
Size |
Φ40mm*60mm(1-37/64in*2-23/64in) |
|
|
Operating temperature range |
-25℃~70℃(-25/70/21) | |

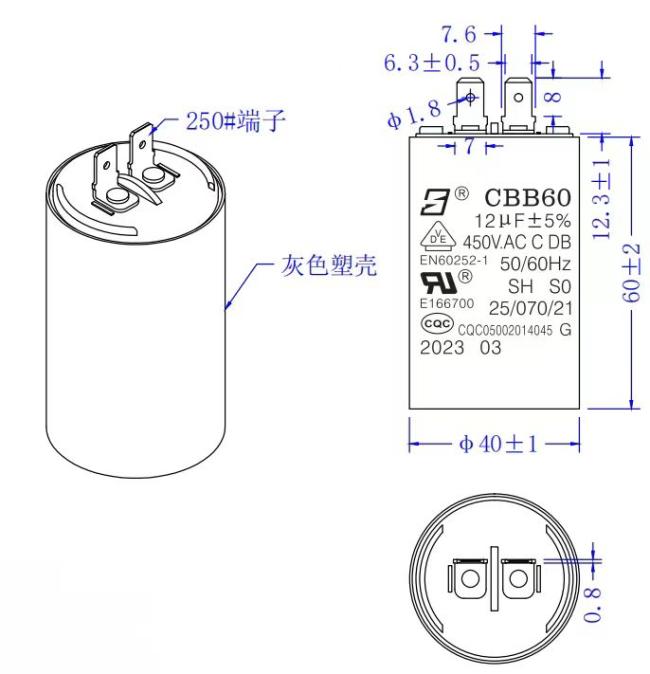

Outline Drawing(40mm=1-37/64in,60mm=2-23/64in)
