CBB61 Motor Fan Capacitor 450V 2.0UF Celling Fan Capacitor Two Quick-Connect Terminals
CBB61 Motor Fan Capacitor 450V 2.0UF Celling Fan Capacitor Two Quick-Connect Terminals
Use metallized film irresponsive winding and RoSH metal spray technology. retardant plastic case and epoxy resin filling,outlet by plated tin-copper plated steel wire or copper terminal.
Applications
The capacitor is ideal for a variety of applications, including air conditioners, refrigerators, washing machines, pumps, and other AC motors. It is designed to help motor start more quickly and efficiently, providing stable and reliable operation. It can also increase motor efficiency and reduce power consumption.

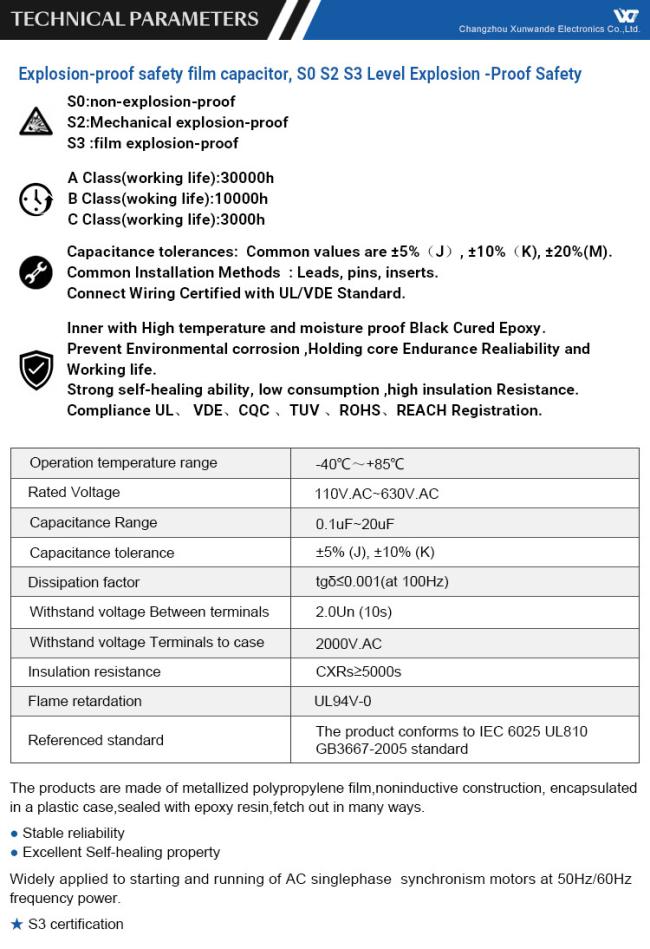

Basic Info.(Techical Parameters)
|
Rated frequency |
50/60Hz |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
2.0UF |
|
|
Capacitance tolerance |
±5% |
|
|
Withstand voltage test |
2Un 2S | |
|
Flammability |
UL94V-0 |
|
|
Operating temperature range |
-25℃~70℃(-25/70/21) | |

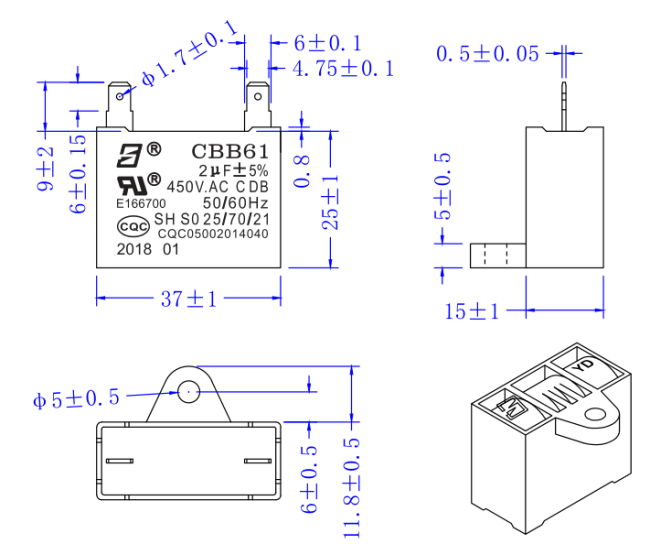

Outline Drawing(37mm=1-29/64in,15mm=19/32in,25mm=63/64in)
