450V 3.0mfd Air Conditioner CBB61 Fan Capacitor Selt-Healing
CBB61 450V 3.0mfd Air Conditioner Fan Capacitor Selt-Healing
Air Conditioner Fan Capacitor is specially designed with a rated frequency of 50/60Hz, a rated voltage of 450VAC. This capacitor is capable of providing a reliable start for a wide range of Air Conditioner, including motor start, inverter and compressor. It is highly robust and reliable and can be used for a variety of motor start-up applications.
Applications
It is often inseparable from many instruments, household appliances and electronic products, such as TV sets, electric fans, microwave ovens and range hoods. In electrical circuits, it can be used as DC pulse and AC step-down. It is often used in the circuits of energy-saving lamps and various electric ballast circuits.
Basic Info.(Techical Parameters)
|
Rated frequency |
50/60Hz |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
3.0UF |
|
|
Capacitance tolerance |
±5% |
|
|
Withstand voltage test |
2Un 2S | |
|
Flammability |
UL94V-0 |
|
|
Operating temperature range |
-25℃~70℃(-25/70/21) | |

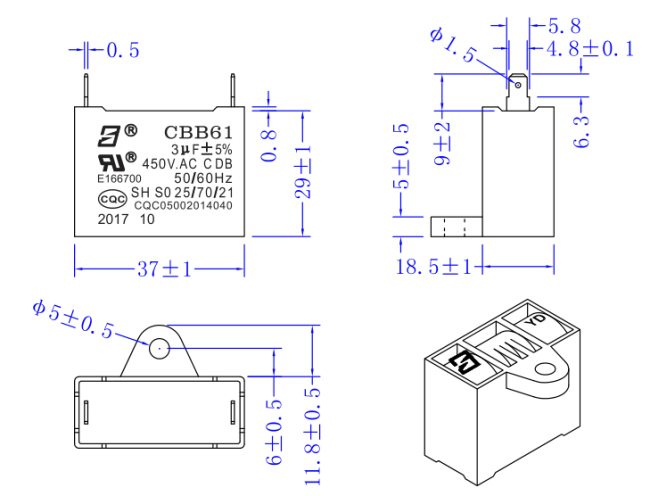

Outline Drawing(37mm=1-29/64in,18.5mm=47/64in,29mm=1-9/64in)
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Workshop and Transport
Why Choose XWD-XD Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
