6.0mfd 450v Air Conditioner CBB61 Fan Capacitor 3000~10000 Hours
CBB61 450V 6.0mfd 3000~10000 Hours Air Conditioner Fan Capacitor
Air Conditioner Fan Capacitor is an important component for motor starting and running. It is produced by an original manufacturer, offering a great reliability and stability.It can operate in a temperature range of -25℃ to +70℃. This AC Motor Compressor Capacitor, Motor Starting Capacitor, AC Motor Condenser is reliable and suitable for a wide range of applications, providing a long service life.
Applications
Air Conditioner Fan Capacitor is designed for air conditioner, refrigerator, washing machine, and other AC motor applications.
Basic Info.(Techical Parameters)
|
Rated frequency |
50/60Hz |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
6.0UF |
|
|
Capacitance tolerance |
±5% |
|
|
Withstand voltage test |
2Un 2S | |
|
Flammability |
UL94V-0 |
|
|
Operating temperature range |
-25℃~70℃(-25/70/21) | |

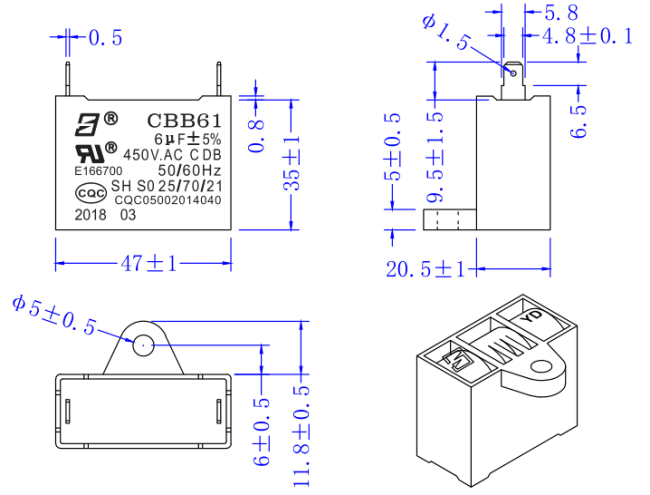

Outline Drawing(47mm=1-27/32in,20.5mm=13/16in,35mm=1-3/8in)
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Workshop and Transport
Why Choose XWD-XD Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
