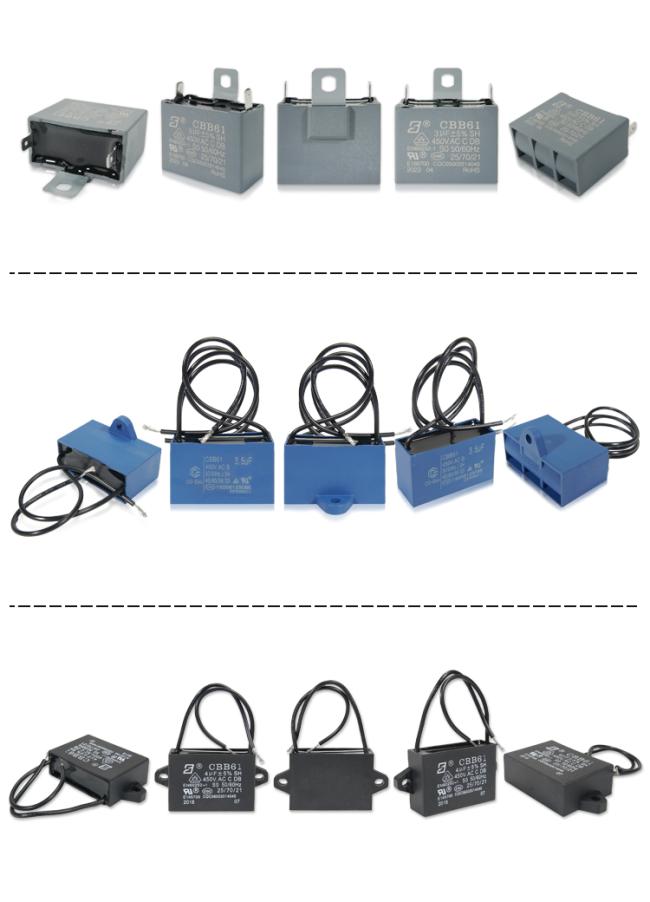

450V 10UF CBB61 Fan Capacitor Front Lug Running Capacitor Celling Fan Capacitor
450V 10UF CBB61 Fan Capacitor Front Lug Running Capacitor Celling Fan Capacitor
The Fan Capacitor is a motor starting and running capacitor designed to improve motor performance and efficiency. It has a plastic triangle shaped housing with a location hole for easy installation.It is a reliable and durable product that can be used in a variety of applications.PBT material shell, small size, light weight epoxy resin encapsulation, good self-healing properties.
Applications
It is a reliable and durable product that can be used in a variety of applications, such as motor compressing, motor starting and motor running.
Basic Info.(Techical Parameters)
|
Rated frequency |
50/60Hz |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
10UF |
|
|
Capacitance tolerance |
±5% |
|
|
Withstand voltage test |
2Un 2S | |
|
Flammability |
UL94V-0 |
|
|
Operating temperature range |
-25℃~70℃(-25/70/21) | |
Outline Drawing(58mm=2-9/32in,26mm=1-1/32in,38mm=1-1/2in)
