CBB61 Ceiling Fan Capacitor 450V 8.0mfd With 100mm Line Length
CBB61 450V 8.0UF Ceiling Fan Capacitor With 100mm Line Length
The Ceiling Fan Capacitor is an essential part of any ceiling fan motor controller, ensuring that the motor runs smoothly and efficiently. It is designed to provide superior performance and durability, making it an ideal choice for ceiling fan motor controllers.
Applications
Small size, reliable electric performance, self-healing, Packed by difficult burned plastic cases and filled with epoxy. Applied to the starting and better working of single-phase motor in 50Hz(60Hz) frequency AC power system. Can be used in air conditioners ,ventilator,electric fan etc.
Basic Info.(Techical Parameters)
|
Operation temperature range |
-25℃～+70℃ ( 25/70/21 ) |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
8.0UF |
|
|
Capacitance tolerance |
±5% |
|
|
Lifetime |
3000 hours | |
|
Flammability |
UL94V-0 |
|

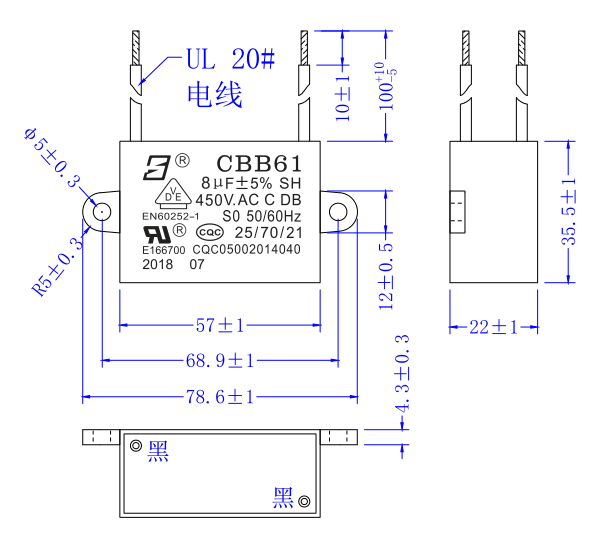

Outline Drawing(57mm=2-1/4in,22mm=55/64in,35.5mm=1-25/64in)
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Workshop and Transport
Why Choose XWD-XD Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
