Motor Run Starting Fan Capacitor CBB61 450V 6.0UF 10000 Hours S3 40 / 85 / 21
CBB61 450V 6.0UF 10000 Hours Lifetime Air Conditioner Fan Capacitor
Air conditioner fan capacitor is an electrical capacitor specifically designed for air conditioner motors, stabilizing and starting the motor. It is a high-end capacitor with two quick-connect terminals for easy connection, and a long lifetime of up to 10,000 hours.
Applications
Small size, reliable electric performance, self-healing, Packed by difficult burned plastic cases and filled with epoxy. Applied to the starting and better working of single-phase motor in 50Hz(60Hz) frequency AC power system. Can be used in air conditioners ,ventilator,electric fan etc.
Basic Info.(Techical Parameters)
|
Operation temperature range |
-40℃～+85℃ ( 40/85/21 ) |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
6.0UF |
|
|
Capacitance tolerance |
±5% |
|
|
Lifetime |
10000 hours | |
|
Flammability |
UL94V-0 |
|

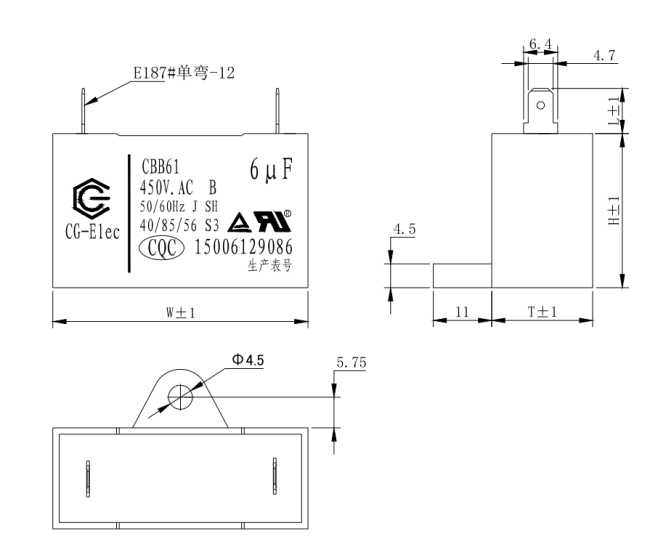

Outline Drawing(1mm=0.0394in)
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Packing and Transport
Facting Information
| Factory Size | 30,000-40,000 square meters | |
| Factory Country/Region | No.7,East Xinyou Road, Ronggui | |
| Number of Production Lines | 10 Automatic Lines | |
| Contract Manufacturing | OEM Service Offered / Design Service Offered / Buyer Label Offered | |
| Annual Output Value | Above US$50 Million | |
Why Choose XWD-CG Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
