CBB61 450V 2.5UF AC Run Motor Capacitor Table Fan Capacitor 10000 Hours Self-Healing
CBB61 450V 2.5UF AC Run Motor Capacitor Table Fan Capacitor 10000 Hours Self-Healing
The Air Conditioner Fan Capacitor is specially designed for air conditioning systems with a rated frequency of 50/60Hz. It is manufactured by an original manufacturer, ODM, agency or retailor and has a long service lifetime of up to 10000 hours. This capacitor is suitable for a wide range of applications, such as air conditioners, and can help to enhance the performance of the air conditioning system.
Applications
This capacitor is suitable for a wide range of applications, such as air conditioners, and can help to enhance the performance of the air conditioning system.
Basic Info.(Techical Parameters)
|
Operation temperature range |
-40℃～+85℃ ( 40/85/21 ) |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
2.5UF |
|
|
Capacitance tolerance |
±5% |
|
|
Lifetime |
10000 hours | |
|
Flammability |
UL94V-0 |
|

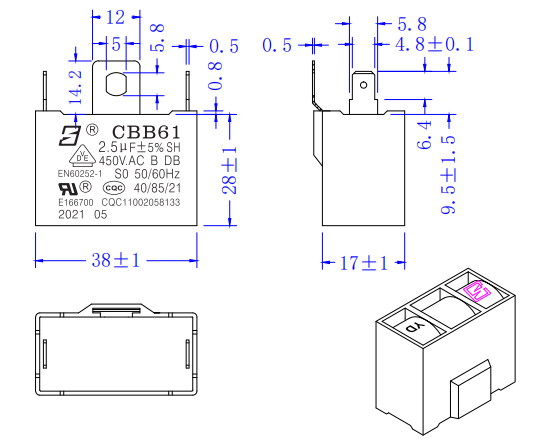

Outline Drawing(38mm=1-1/2in,17mm=43/64in,28mm=1-7/64in)
