CBB61 Fan Capacitor 450V 5UF B-Class 40 / 85 / 21 Straight Lug Celling Fan
CBB61 Fan Capacitor 450V 5UF B-Class 40 / 85 / 21 Straight Lug Celling Fan
Air Conditioner Fan Capacitor is a B-Class product that is designed for air conditioners. It has a capacitance of 5.0uF. It has a long lifetime of 10000 hours and can operate under a wide temperature range from -40℃ to +85℃. The purpose of air conditioning capacitors is to help start the fan motor and reduce the amount of electricity necessary to keep the motor running smoothly. It also helps to reduce the strain on the compressor and increase the efficiency of the air conditioner.
Applications
This capacitor is suitable for a wide range of applications, such as air conditioners, and can help to enhance the performance of the air conditioning system.
Basic Info.(Techical Parameters)
|
Operation temperature range |
-40℃～+85℃ ( 40/85/21 ) |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
5.0UF |
|
|
Capacitance tolerance |
±5% |
|
|
Lifetime |
10000 hours | |
|
Flammability |
UL94V-0 |
|

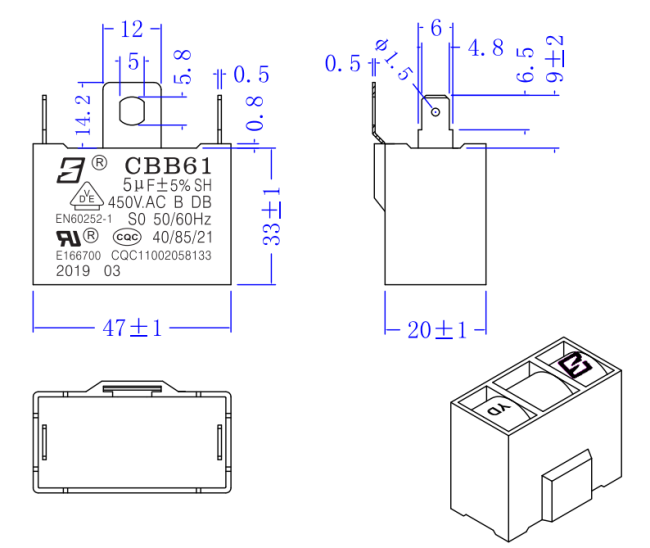

Outline Drawing(47mm=1-27/32in,20mm=25/32in,33mm=1-19/64in)
