2.5mfd Air Conditioner CBB61 Fan Capacitor 450V B-Class 10000 Hours Lifetime For Home
CBB61 450V 2.5UF B-Class 10000 Hours Lifetime Air Conditioner Capacitor
This air conditioner fan capacitor is specifically designed for air conditioning systems. It is a B-Class capacitor with a tolerance of ±5%, and has an expected lifetime of up to 10,000 hours. It is easy to install with its straight iron ear and positioning hole.
Applications
This air conditioner fan capacitor can be used in a variety of air conditioning systems for any home or commercial use.
Basic Info.(Techical Parameters)
|
Operation temperature range |
-40℃～+85℃ ( 40/85/21 ) |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
2.5UF |
|
|
Capacitance tolerance |
±5% |
|
|
Lifetime |
10000 hours | |
|
Flammability |
UL94V-0 |
|

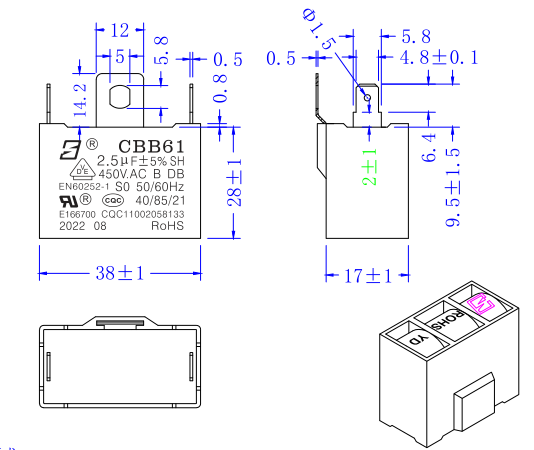

Outline Drawing(38mm=1-1/2in,17mm=43/64in,28mm=1-7/64in)
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Workshop and Transport
Why Choose XWD-XD Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
