Motor Capacitor CBB61 450V 3.0UF Start Capacitor RoHS 3000 Hours S0 Fan Capacitor
Motor Capacitor CBB61 450V 3.0UF Start Capacitor RoHS 3000 Hours S0 Fan Capacitor
The air conditioner fan capacitor is designed to operate in air conditioners and other similar systems. It is a reliable and durable device that can be used for a long time. It can help maintain the air conditioner’s power and energy efficiency, and provides a steady flow of air. It is also designed to protect the air conditioner from overheating and other potential damage.
Applications
It can also be used in other applications such as refrigerators, freezers, and other cooling systems.
Basic Info.(Techical Parameters)
|
Operation temperature range |
-40℃～+85℃ ( 40/85/21 ) |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
3.0UF |
|
|
Capacitance tolerance |
±5% |
|
|
Lifetime |
10000 hours | |
|
Flammability |
UL94V-0 |
|

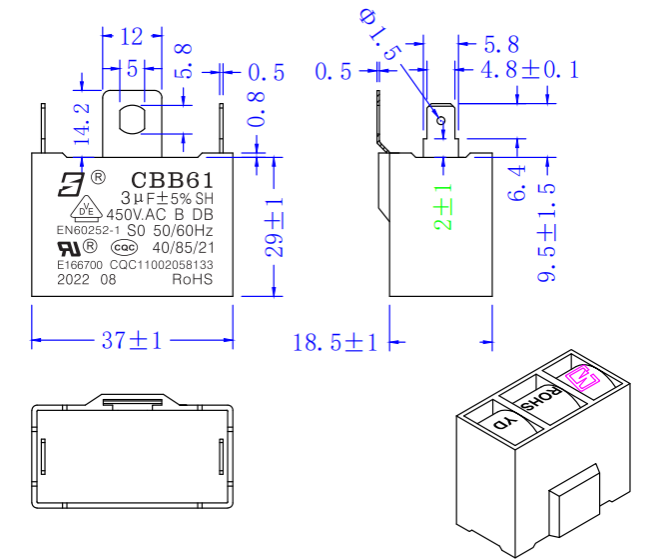

Outline Drawing(37mm=1-29/64in,18.5mm=47/64in,29mm=1-9/64in)
