CBB61 450V 10mfd Air Conditioner Fan Capacitor two qucik-connect teriminals S3 SH B-class
CBB61 450V 10mfd Air Conditioner Fan Capacitor two qucik-connect teriminals S3 SH B-class
Air conditioner fan capacitors, which are also known as AC capacitors, are designed to be used as a starting device for air conditioners. The capacitor is an essential part of an air conditioner because it helps the motor of the air conditioner to start quickly. This is done by providing a brief surge of power to the motor when the air conditioner is turned on.
Applications
The Air Conditioner Fan Capacitor is widely used in homes, offices, factories, schools, and other places which require air conditioning. It can provide superb performance and long-lasting service for air conditioners.
Basic Info.(Techical Parameters)
|
Operation temperature range |
-40℃～+85℃ ( 40/85/56 ) |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
10UF |
|
|
Capacitance tolerance |
±5% |
|
|
Lifetime |
10000 hours | |
|
Flammability |
UL94V-0 |
|
| Operation temperature range | -40℃~+85℃ |
| Rated Voltage | 110V.AC-630V.AC |
| Capacitance Range | 0.1uF~20uF |
| Capacitance tolerance | ±5% (J),±10%(K) |
| Dissipation factor | tgō0.001(at 100Hz) |
| Withstand voltage Between terminals | 2.0Un(10s) |
| Withstand voltage Terminals to case | 2000V.AC |
| Insulation resistance | CXRs>5000s |
| Flame retardation | UL94V-0 |
| Referenced standard | IEC 6025 UL810 GB3667-2005 |

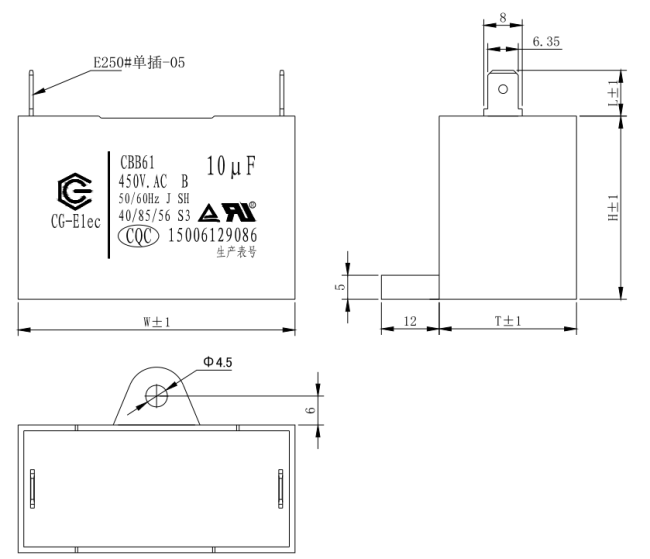

Outline Drawing(W=2-9/32in,T=29/32in,H=1-1/2in)
| Operation temperature range | -40℃~+85℃ |
| Rated Voltage | 110V.AC-630V.AC |
| Capacitance Range | 0.1uF~20uF |
| Capacitance tolerance | ±5% (J),±10%(K) |
| Dissipation factor | tgō0.001(at 100Hz) |
| Withstand voltage Between terminals | 2.0Un(10s) |
| Withstand voltage Terminals to case | 2000V.AC |
| Insulation resistance | CXRs>5000s |
| Flame retardation | UL94V-0 |
| Referenced standard | IEC 6025 UL810 GB3667-2005 |
