2.5mfd CBB61 450V Air Conditioner Fan Capacitor ±5% Tolerance With 30mm Line Length
CBB61 450V 2.5UF Air Conditioner Fan Capacitor ±5% Tolerance With 30mm Line Length
The air conditioner fan capacitor is an electrical capacitor for air conditioner, designed to help activate and control air conditioner fans. It is a air conditioner fan motor starting device, also known as a ceiling fan control capacitor. It is made of 94-V0 retardant plastic box and epoxy filling, with a plastic triangle with location hole for easy installation. It comes in black or blue, and is a B-class grade product from the original manufacturer, ODM, agency or retailer.
Applications
The air conditioner fan capacitor is an essential part of any ceiling fan motor controller, ensuring that the motor runs smoothly and efficiently. It is designed to provide superior performance and durability, making it an ideal choice for air conditioner fan motor controllers.
Basic Info.(Techical Parameters)
|
Operation temperature range |
-40℃～+85℃ ( 40/85/21 ) |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
2.5UF |
|
|
Capacitance tolerance |
±5% |
|
|
Lifetime |
3000 hours | |
|
Flammability |
UL94V-0 |
|
|
meet the ROHS requirement |
||

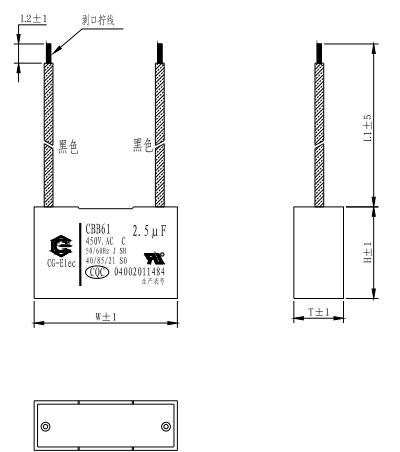

Outline Drawing(1mm=0.0394in)
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Packing and Transport
Facting Information
| Factory Size | 30,000-40,000 square meters | |
| Factory Country/Region | No.7,East Xinyou Road, Ronggui | |
| Number of Production Lines | 10 Automatic Lines | |
| Contract Manufacturing | OEM Service Offered / Design Service Offered / Buyer Label Offered | |
| Annual Output Value | Above US$50 Million | |
Why Choose XWD-CG Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
