1.2mfd Ceiling Fan Capacitor CBB61 450V Blue S3 2Un .5s 40 / 85 / 56
CBB61 450V 1.2UF Blue S3 2Un .5s Ceiling Fan Capacitor For Fan 40 / 85 / 56 Climatic Category
Ceiling Fan Capacitor is a reliable and high-performance motor controller for ceiling fan. It is certified with UL/TUV/CQC/RoHS, and comes in Blue color with B-class grade. The installation type is a plastic triangle with a location hole for easy mounting.
Applications
Small size, reliable electric performance, self-healing, Packed by difficult burned plastic cases and filled with epoxy. Applied to the starting and better working of single-phase motor in 50Hz(60Hz) frequency AC power system. Can be used in air conditioners ,ventilator,electric fan etc.
Basic Info.(Techical Parameters)
|
Operation temperature range |
-40℃～+85℃ ( 40/85/56 ) |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
1.2UF |
|
|
Capacitance tolerance |
±5% |
|
|
Lifetime |
10000 hours | |
|
Flammability |
UL94V-0 |
|
|
meet the ROHS requirement |
||

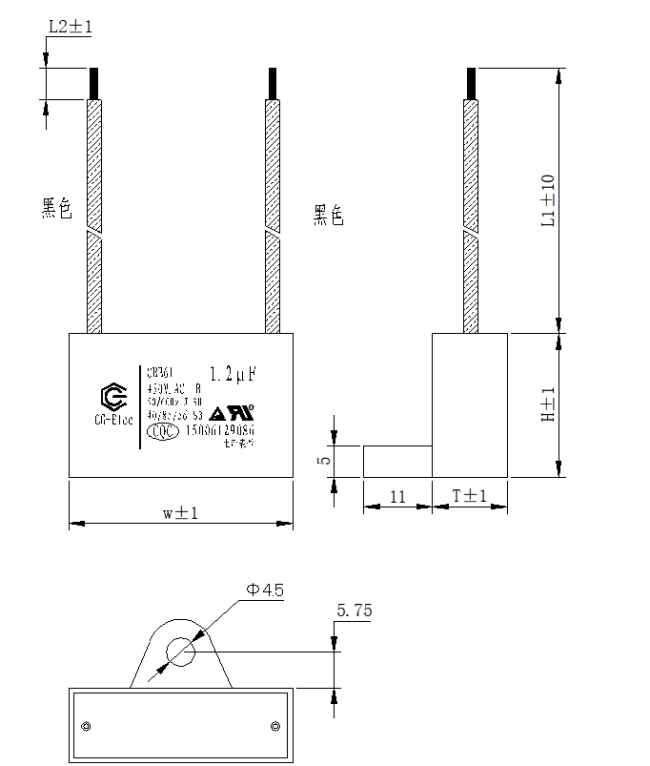

Outline Drawing(1mm=0.0394in)
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Packing and Transport
Facting Information
| Factory Size | 30,000-40,000 square meters | |
| Factory Country/Region | No.7,East Xinyou Road, Ronggui | |
| Number of Production Lines | 10 Automatic Lines | |
| Contract Manufacturing | OEM Service Offered / Design Service Offered / Buyer Label Offered | |
| Annual Output Value | Above US$50 Million | |
Why Choose XWD-CG Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
