2 Wire Blue Air Conditioner Fan Capacitor CBB61 450V 3.0mfd With 30 Line Length
CBB61 450V 3.0UF Blue Air Conditioner Fan Capacitor With 30 Line Length
Air Conditioner Fan Motor Starting Device, also known as air conditioner fan starting capacitor or air conditioner fan motor controller, designed to last for at least 3000 hours and provide a reliable starting operation for a air conditioner fan motor.
Applications
Mainly used in refrigerators, air conditioners, electric fans, household appliances, electronic products, and so on.
Basic Info.(Techical Parameters)
|
Operation temperature range |
-40℃～+85℃ ( 40/85/21 ) |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
3.0UF |
|
|
Capacitance tolerance |
±5% |
|
|
Lifetime |
3000 hours | |
|
Flammability |
UL94V-0 |
|
|
meet the ROHS requirement |
||

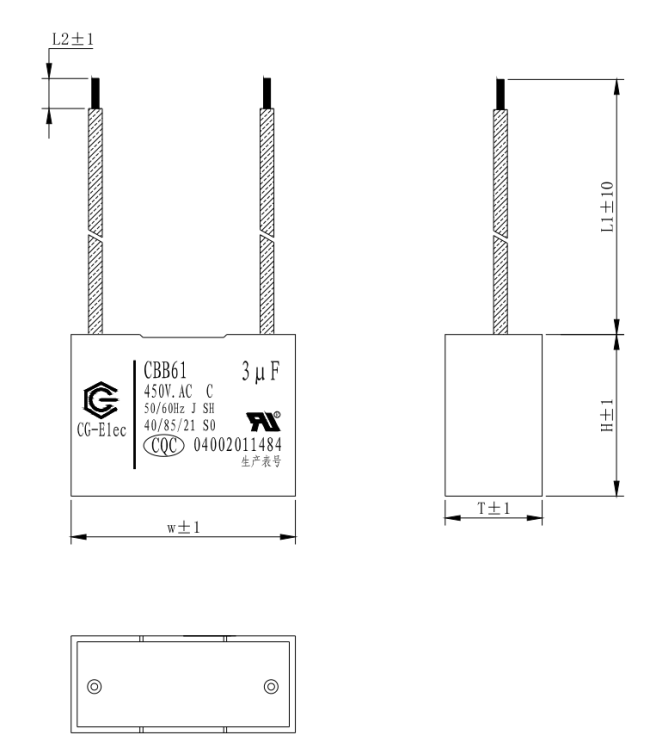

Outline Drawing(1mm=0.0394in)
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Packing and Transport
Facting Information
| Factory Size | 30,000-40,000 square meters | |
| Factory Country/Region | No.7,East Xinyou Road, Ronggui | |
| Number of Production Lines | 10 Automatic Lines | |
| Contract Manufacturing | OEM Service Offered / Design Service Offered / Buyer Label Offered | |
| Annual Output Value | Above US$50 Million | |
Why Choose XWD-CG Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
