CBB61 250V 15mfd Blue Ceiling Fan Capacitor With 200 Line Length VH Terminal
CBB61 250V 15UF Blue Ceiling Fan Capacitor With 200 Line Length VH Terminal
Ceiling Fan Capacitor is an essential component part for fans. This ceiling fan capacitor has a size of 48mm*21mm*32mm and is suitable for use at a rated frequency of 50/60Hz. It has a plastic triangle with location hole for installation and two two PVC wires for connection. The ceiling fan capacitor is made of high-quality materials, ensuring long-term use and better performance.
Applications
Mainly used in refrigerators, air conditioners, electric fans, household appliances, electronic products, and so on.
Basic Info.(Techical Parameters)
|
Operation temperature range |
-25℃～+85℃ ( 25/85/21 ) |
|
|
Rated Voltage |
250V.AC |
|
|
Capacitance Range |
15UF |
|
|
Capacitance tolerance |
±5% |
|
|
Lifetime |
3000 hours | |
|
Flammability |
UL94V-0 |
|
|
meet the ROHS requirement |
||

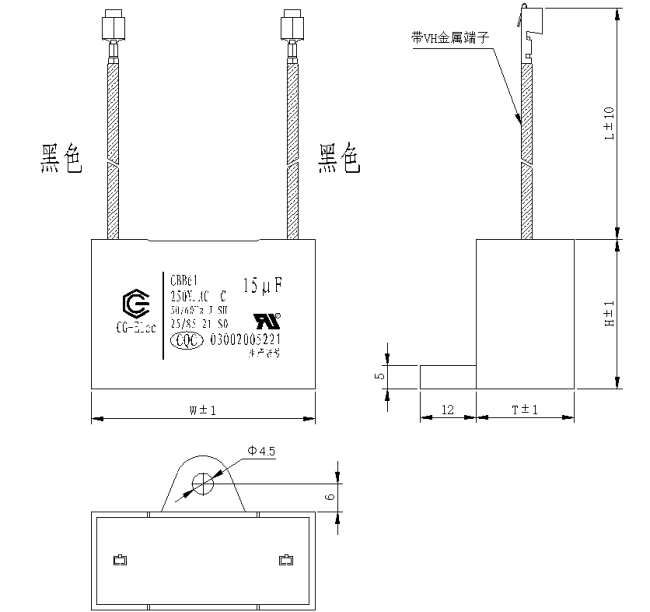

Outline Drawing(1mm=0.0394in)
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Packing and Transport
Facting Information
| Factory Size | 30,000-40,000 square meters | |
| Factory Country/Region | No.7,East Xinyou Road, Ronggui | |
| Number of Production Lines | 10 Automatic Lines | |
| Contract Manufacturing | OEM Service Offered / Design Service Offered / Buyer Label Offered | |
| Annual Output Value | Above US$50 Million | |
Why Choose XWD-CG Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
