CBB61 250V 22mfd Blue B-Class Ceiling Fan Capacitor With 200 Line Length VH Terminal
CBB61 250V 22UF Blue B-Class Ceiling Fan Capacitor With 200 Line Length VH Terminal
The Ceiling Fan Capacitor is a fan part that is designed to help increase motor starting torque and to improve performance of the fan . This AC capacitor features a 22uF capacitance, 50/60Hz rated frequency, and a 94-V0 Retardant Plastic Box and Epoxy Filling shell material.
Applications
Mainly used in refrigerators, air conditioners, electric fans, household appliances, electronic products, and so on.
Basic Info.(Techical Parameters)
|
Operation temperature range |
-40℃～+85℃ (40/85/21 ) |
|
|
Rated Voltage |
250V.AC |
|
|
Capacitance Range |
22UF |
|
|
Capacitance tolerance |
±5% |
|
|
Lifetime |
10000 hours | |
|
Flammability |
UL94V-0 |
|
|
meet the ROHS requirement |
||

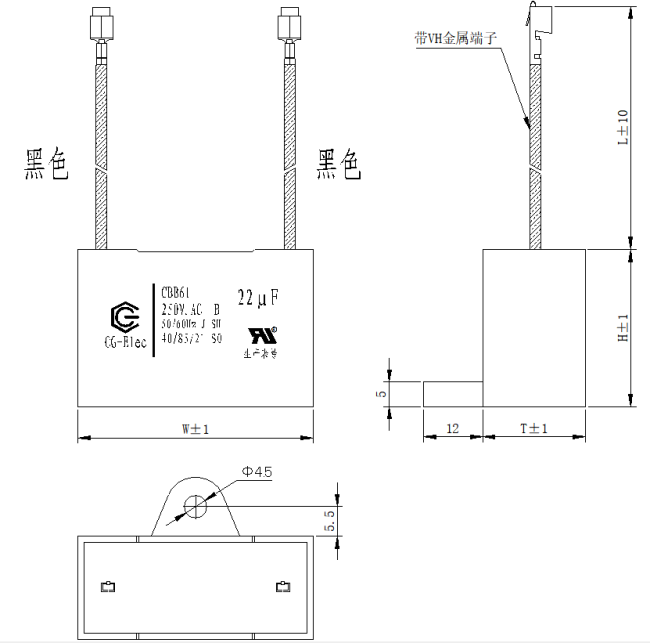

Outline Drawing(1mm=0.0394in)
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Packing and Transport
Facting Information
| Factory Size | 30,000-40,000 square meters | |
| Factory Country/Region | No.7,East Xinyou Road, Ronggui | |
| Number of Production Lines | 10 Automatic Lines | |
| Contract Manufacturing | OEM Service Offered / Design Service Offered / Buyer Label Offered | |
| Annual Output Value | Above US$50 Million | |
Why Choose XWD-CG Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
