CBB61 450V 4.0UF Fan Motor Run Capacitor B-Class S3 Capacitor RoHS 50 / 60HZ
CBB61 450V 4.0UF B-Class S3 Air Conditioner Capacitor with ±5% Tolerance
Our Air Conditioner Fan Capacitor is made of high-quality materials to provide long-lasting performance and reliability. It is designed for air conditioning systems and helps to start and run the motor of the fan. This capacitor has a Rated Frequency of 50/60Hz, Capacitance of 4.0uF, Grade of B-Class, Tolerance of ±5%, and Connection Type of two quick-connect terminals. It is a high-performance capacitor and is ideal for controlling and regulating the air conditioner fan motor. This capacitor is reliable and can withstand the harsh environments of the air conditioner. It is easy to install and provides superior performance.
Applications
Air conditioner fan capacitor is widely used in the residential, commercial and industrial air conditioning systems. It helps to increase the air conditioning system efficiency and reduce energy consumption.
Basic Info.(Techical Parameters)
|
Operation temperature range |
-40℃～+85℃ (40/85/56 ) |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
4.0UF |
|
|
Capacitance tolerance |
±5% |
|
|
Lifetime |
10000 hours | |
|
Flammability |
UL94V-0 |
|

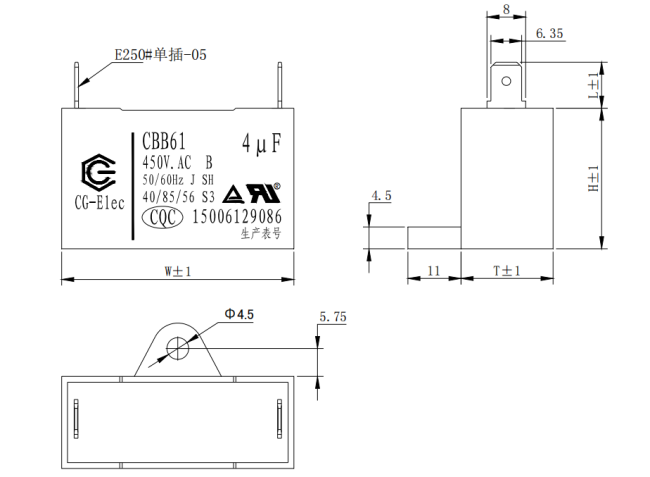

Outline Drawing(W=1-57/64in,T=3/4in,H=1-9/64in)
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Packing and Transport
Facting Information
| Factory Size | 30,000-40,000 square meters | |
| Factory Country/Region | No.7,East Xinyou Road, Ronggui | |
| Number of Production Lines | 10 Automatic Lines | |
| Contract Manufacturing | OEM Service Offered / Design Service Offered / Buyer Label Offered | |
| Annual Output Value | Above US$50 Million | |
Why Choose XWD-CG Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
