CBB61 450V 1.0UF Air Conditioner Fan Capacitor Blue RoHs B-Class S3 Film Capacitor
CBB61 450V 1.0UF Air Conditioner Fan Capacitor Blue RoHs B-Class S3 Film Capacitor
Air Conditioner Fan Capacitor is a high-quality electrical capacitor for air conditioner, which is widely used in air conditioner and other motor starting devices. It is made of 94-V0 retardant plastic box and epoxy filling, providing excellent insulation and fire-resistant performance. It is designed to withstand voltage of 2Un.5s ensuring the stability and safety of the air conditioner performance. It is supplied by original manufacturers, ODM, agencies and retailers.
Applications
Small size, reliable electric performance, self-healing, Packed by difficult burned plastic cases and filled with epoxy. Applied to the starting and better working of single-phase motor in 50Hz(60Hz) frequency AC power system. Can be used in air conditioners ,ventilator,electric fan etc.
Basic Info.(Techical Parameters)
|
Operation temperature range |
-40℃～+85℃ (40/85/56 ) |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
1.0UF |
|
|
Capacitance tolerance |
±5% |
|
|
Lifetime |
10000 hours | |
|
Flammability |
UL94V-0 |
|

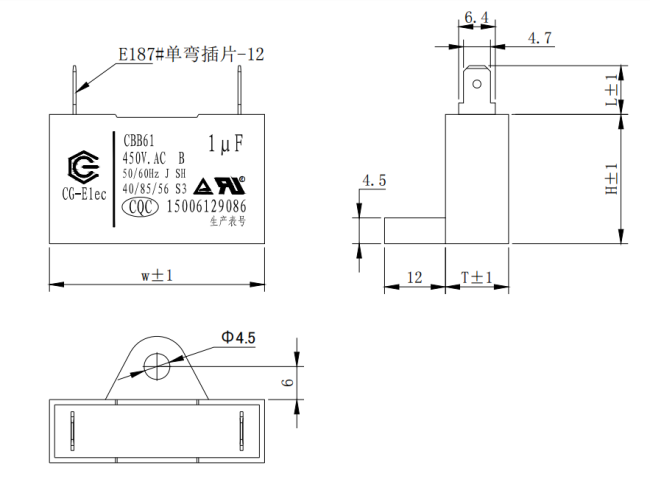

Outline Drawing(1mm=0.0394in)
