CBB61 250V 12mfd S3 Air Conditioner Fan Capacitor With Plastic Triangle With Location Hole
CBB61 250V 12UF S3 Air Conditioner Fan Capacitor With Plastic Triangle With Location Hole
Aircon capacitors usually consist of metal foil and electrolyte, which are rolled into a cylindrical or square shape and encapsulated in a plastic case. When the air conditioner motor starts, the air conditioner capacitor is charged and stores the electrical energy. When the air conditioner motor needs to run, the air conditioner capacitor will release the stored electrical energy to provide enough power for the air conditioner motor.
Applications
It has the advantages of high voltage resistance, strong ability to withstand large current impact and high safety.
Basic Info.(Techical Parameters)
|
Rated frequency |
50/60Hz |
|
|
Rated Voltage |
250V.AC |
|
|
Capacitance Range |
12UF |
|
|
Capacitance tolerance |
±5% |
|
|
Withstand voltage test |
2Un 2S | |
|
Flammability |
UL94V-0 |
|
|
Operating temperature range |
-40℃~85℃(-40/85/56) | |

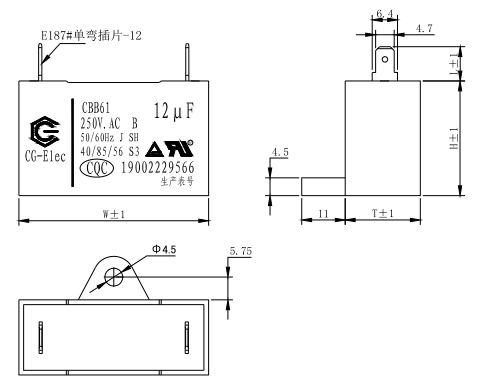

Outline Drawing(W=1-57/64in,T=3/4in,H=1-9/64in)
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Packing and Transport
Facting Information
| Factory Size | 30,000-40,000 square meters | |
| Factory Country/Region | No.7,East Xinyou Road, Ronggui | |
| Number of Production Lines | 10 Automatic Lines | |
| Contract Manufacturing | OEM Service Offered / Design Service Offered / Buyer Label Offered | |
| Annual Output Value | Above US$50 Million | |
Why Choose XWD-CG Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
