CBB61 Air Conditioner Fan capacitor 450V 4.0UF Ac Capacitor B-Class 40 / 85 / 21
Price:
To be negotiated
MOQ:
10 pieces
Delivery Time:
7-20 workdays
Brand:
XWD
Product Description
CBB61 Air Conditioner Fan capacitor 450V 4.0UF Ac Capacitor B-Class 40 / 85 / 21
Air conditioner fan capacitor is an essential component for Air Conditioner. It is designed with two quick-connect terminals, a compact size of 48*19*29. It has a tolerance of ±5%, providing reliable performance and durability.
Applications
It has the advantages of high voltage resistance, strong ability to withstand large current impact and high safety.Used for fans, air conditioners, water pumps, etc.
Basic Info.(Techical Parameters)
|
Rated frequency |
50/60Hz |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
4.0UF |
|
|
Capacitance tolerance |
±5% |
|
|
Withstand voltage test |
2Un 2S | |
|
Flammability |
UL94V-0 |
|
|
Operating temperature range |
-40℃~85℃(-40/85/21) | |

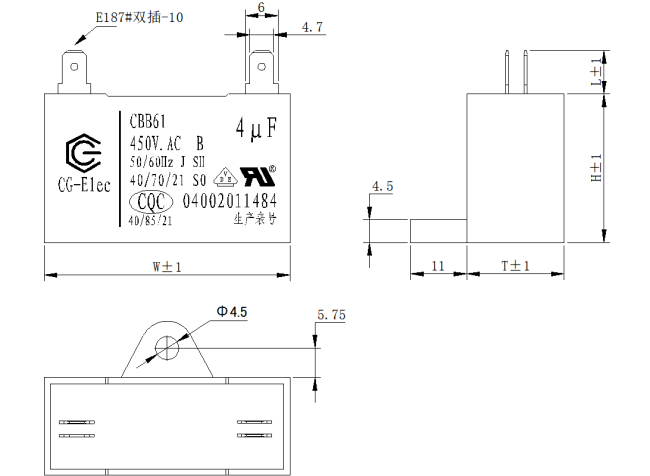

Outline Drawing(1mm=0.0394in)
