Running Capacitort CBB61 450V 5.0UF Air Conditioner Fan Capacitor SH 10000 Hours
Running Capacitort CBB61 450V 5.0UF Air Conditioner Fan Capacitor SH 10000 Hours
Air conditioner fan capacitor has two quick-connect terminals for easy connection. This air conditioner fan capcaitor offers excellent performance with a wide operating temperature range of -40℃ to +85℃. It is also characterized by its robust construction with a size of 48*21*32 and 4.7mm terminal. The air conditioner fan capacitor is guaranteed for long-term reliable operation with a lifetime of up to 10,000 hours.
Applications
It has the advantages of high voltage resistance, strong ability to withstand large current impact and high safety.Used for fans, air conditioners, water pumps, etc.
Basic Info.(Techical Parameters)
|
Rated frequency |
50/60Hz |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
5.0UF |
|
|
Capacitance tolerance |
±5% |
|
|
Withstand voltage test |
2Un 2S | |
|
Flammability |
UL94V-0 |
|
|
Operating temperature range |
-40℃~85℃(-40/85/21) | |

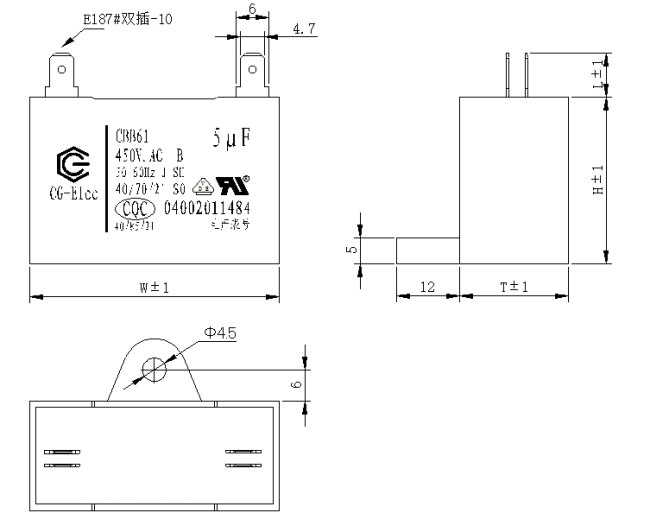

Outline Drawing(1mm=0.0394in)
