Fan Capacitor CBB61 450V 1.2UF Ceilling Fan Capacitor Self-Healing B-Class Blue RoHS
CBB61 450V 1.2UF Blue Air Conditioner Fan Capacitor With Self-Healing 10000 Hours
Air conditioner fan capacitors are electric components designed to help motors start up and run more efficiently. These air conditioner fan capacitors are typically available in two types - Capacitors for household air conditioners and Industrial air conditioning capacitors - with a tolerance of ±5%. The air conditioner fan capacitors are made of a high-quality plastic triangle with a location hole, and can last up to 10,000 hours. As an original manufacturer, ODM, agency, or retailer, we offer a wide range of air conditioner fan capacitors to meet your application needs.
Applications
It has the advantages of high voltage resistance, strong ability to withstand large current impact and high safety.Used for fans, air conditioners, water pumps, etc.
Basic Info.(Techical Parameters)
|
Rated frequency |
50/60Hz |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
1.2UF |
|
|
Capacitance tolerance |
±5% |
|
|
Withstand voltage test |
2Un 2S | |
|
Flammability |
UL94V-0 |
|
|
Operating temperature range |
-40℃~85℃(-40/85/21) | |

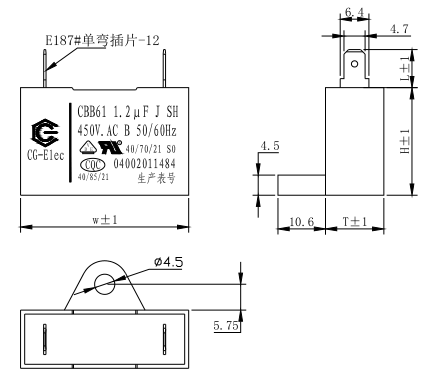

Outline Drawing(1mm=0.0394in)
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Packing and Transport
Facting Information
| Factory Size | 30,000-40,000 square meters | |
| Factory Country/Region | No.7,East Xinyou Road, Ronggui | |
| Number of Production Lines | 10 Automatic Lines | |
| Contract Manufacturing | OEM Service Offered / Design Service Offered / Buyer Label Offered | |
| Annual Output Value | Above US$50 Million | |
Why Choose XWD-CG Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
