AC Motor Start Capacitor CBB61 250V 4.0UF Self Healing 10000 Hours Protected 10000AFC
AC Motor Start Capacitor CBB61 250V 4.0UF Self Healing 10000 Hours Protected 10000AFC
Industrial Fan Capacitor is a capacitor with four quick-connect terminals, specifically designed for air conditioner. It comes with a rated voltage of 250 VAC and a lifetime of 10,000 hours. The capacitance of the Industrial Fan Capacitor is adjustable from 2.5uF to 100uF to meet different requirements. It is compact and lightweight with dimensions of 37.5*13*24.
Applications
It is often inseparable in many electrical equipment, such as electric fans, air conditioners, washing machines, generators and other circuits.
Basic Info.(Techical Parameters)
|
Rated frequency |
50/60Hz |
|
|
Rated Voltage |
250V.AC |
|
|
Capacitance Range |
4.0UF |
|
|
Capacitance tolerance |
±5% |
|
|
Withstand voltage test |
2Un 2S | |
|
Flammability |
UL94V-0 |
|
|
Operating temperature range |
-40℃~85℃(-40/85/56) | |

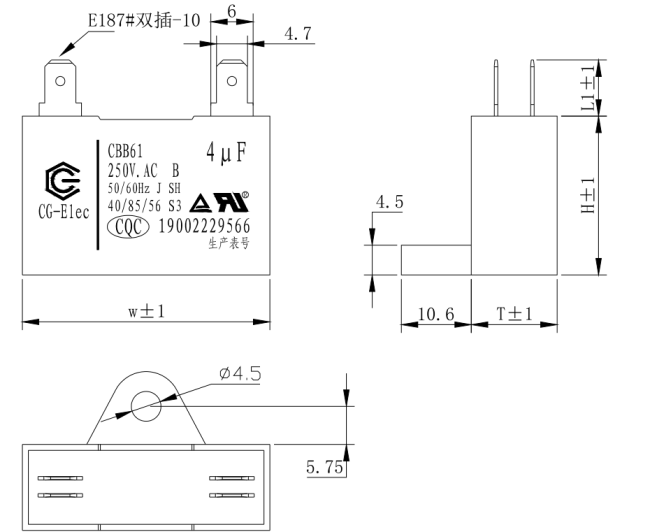

Outline Drawing(1mm=0.0394in)
