CBB61 450V 3.5mfd Line Length 150 Ceiling Fan Capacitor With Plastic Triangle With Location Hole
CBB61 450V 3.5UF Line Length 150 Ceiling Fan Capacitor With Plastic Triangle With Location Hole
This capacitor has a lifetime of up to 10000 hours, a tolerance of ±5%, a rated frequency of 50/60Hz, and an operating temperature range of -45℃~+85℃. It is also equipped with two PVC wires for connection. This Ceiling Fan Capacitor is suitable for most fans,and is essential for providing reliable and efficient operation.
Applications
This Ceiling Fan Capacitor is suitable for most fans, and is essential for providing reliable and efficient operation.
Basic Info.(Techical Parameters)
|
Rated frequency |
50/60Hz |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
3.5UF |
|
|
Capacitance tolerance |
±5% |
|
|
Withstand voltage test |
2Un 2S | |
|
Flammability |
UL94V-0 |
|
|
Operating temperature range |
-40℃~85℃(-40/85/21) | |

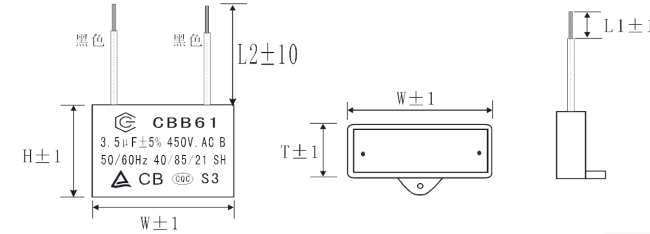

Outline Drawing(1mm=0.0394in)
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Packing and Transport
Facting Information
| Factory Size | 30,000-40,000 square meters | |
| Factory Country/Region | No.7,East Xinyou Road, Ronggui | |
| Number of Production Lines | 10 Automatic Lines | |
| Contract Manufacturing | OEM Service Offered / Design Service Offered / Buyer Label Offered | |
| Annual Output Value | Above US$50 Million | |
Why Choose XWD-CG Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
