CBB61 250V 30mfd Line Length 60 Ceiling Fan Capacitor With Plastic Triangle With Location Hole
CBB61 250V 30UF Line Length 60 Ceiling Fan Capacitor With Plastic Triangle With Location Hole
Ceiling Fan Capacitor is an essential motor starting device for fans. It is used to fan to ensure that the motor runs stably and reliably. As an original manufacturer, our Ceiling Fan Capacitor is made of high-grade film materials, which is of great durability and reliability. It features a line length of 200MM, two PVC wires (UL 20AWG#1015) for connection, and a plastic triangle with location hole for installation.
Applications
It is suitable for use with ceiling fans, compressors and other motor starting devices with a rated frequency of 50/60Hz.
Basic Info.(Techical Parameters)
|
Rated frequency |
50/60Hz |
|
|
Rated Voltage |
250V.AC |
|
|
Capacitance Range |
30UF |
|
|
Capacitance tolerance |
±5% |
|
|
Withstand voltage test |
2Un 2S | |
|
Flammability |
UL94V-0 |
|
|
Operating temperature range |
-40℃~85℃(-40/85/21) | |

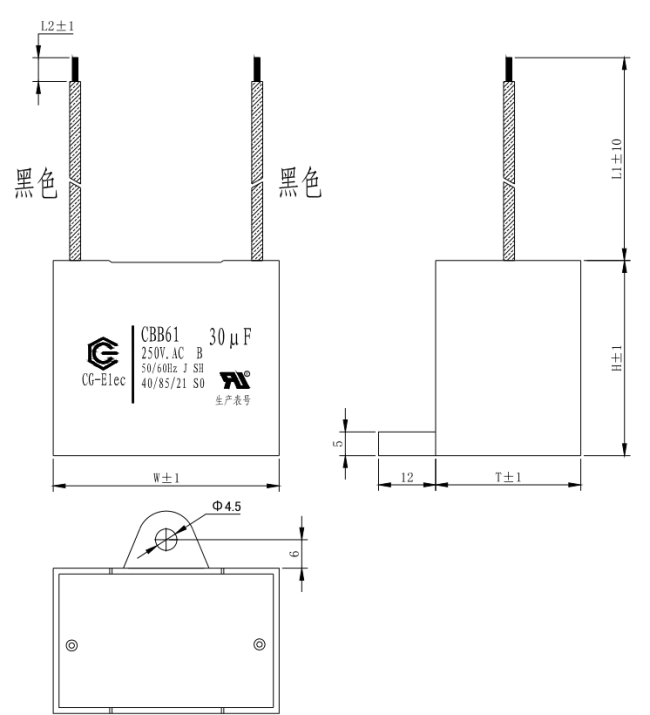

Outline Drawing(1mm=0.0394in)
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Packing and Transport
Facting Information
| Factory Size | 30,000-40,000 square meters | |
| Factory Country/Region | No.7,East Xinyou Road, Ronggui | |
| Number of Production Lines | 10 Automatic Lines | |
| Contract Manufacturing | OEM Service Offered / Design Service Offered / Buyer Label Offered | |
| Annual Output Value | Above US$50 Million | |
Why Choose XWD-CG Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
