CBB61 250V 1.0mfd Line Length 115 Ceiling Fan Capacitor With Straight Iron Ear
CBB61 250V 1.0UF Line Length 115 Ceiling Fan Capacitor With Straight Iron Ear
The Ceiling Fan Capacitor is a motor start capacitor specifically designed for fans. It is an essential component for the reliable and efficient operation of a motor. This capacitor has a rated voltage of 450VAC and a tolerance of ± 5%, and offers a capacitance range of 2.5uF to 100uF. It is a reliable and durable product that is available from both original manufacturer, ODM, agency, and retailer suppliers.
Applications
It is reliable and has a long lifetime of 10000 hours. It is the perfect choice for fans.
Basic Info.(Techical Parameters)
|
Rated frequency |
50/60Hz |
|
|
Rated Voltage |
250V.AC |
|
|
Capacitance Range |
1.0UF |
|
|
Capacitance tolerance |
±5% |
|
|
Withstand voltage test |
2Un 2S | |
|
Flammability |
UL94V-0 |
|
|
Operating temperature range |
Max Temp 70℃ | |

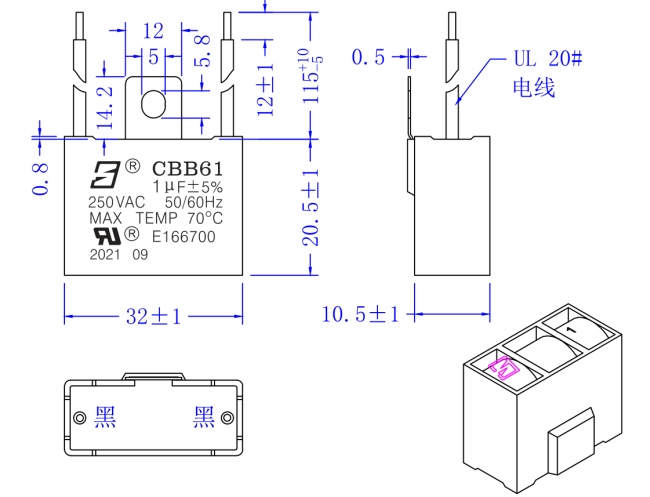

Outline Drawing(32mm=1-17/64in,10.5mm=13/32in,20.5mm=13/16in)
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Workshop and Transport
Why Choose XWD-XD Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
