CBB61 Motor Run Capacitor 250V 5.0UF Celling Fan Capacitor 187 Terminal 3000 Hours
CBB61 250V 5.0UF Air Conditioner Capacitor With Straight Iron Ear
The Air Conditioner Fan Capacitor is a part of air conditioning systems. It is made of 94-V0 retardant plastic box and epoxy filling, providing a durable performance. This air conditioning capacitor material is rated at 50/60Hz and has a size of 37mm*13.5mm*24mm. With a capacitance of 5.0uF, it can be widely used for air conditioning, etc.
Applications
This product is made of high-quality materials, and it has good heat resistance and insulation performance. It is easy to install and use, and its temperature range is wide, which can meet the needs of different environments. It has reliable performance and excellent quality, and is widely used in air conditioners, refrigerators, electric fans, refrigeration and other electrical products.
Basic Info.(Techical Parameters)
|
Operation temperature range |
-25℃～+70℃ (25/70/21) |
|
|
Rated Voltage |
250V.AC |
|
|
Capacitance Range |
5.0UF |
|
|
Capacitance tolerance |
±5% |
|
|
Lifetime |
3000 hours | |
|
Flammability |
UL94V-0 |
|

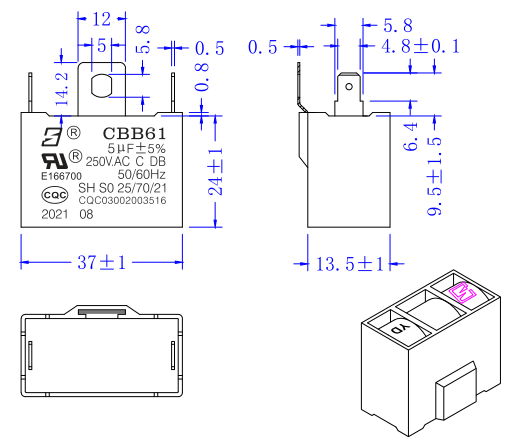

Outline Drawing(37mm=1-29/64in,13.5mm=17/32in,24mm=15/16in)
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Workshop and Transport
Why Choose XWD-XD Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
