CBB61 5.0UF S3 Industrial Fan Explosion Proof Capacitor With 10000 Hours Self Healing
CBB61 250V 5.0mfd S3 Industrial Fan Capacitor With 10000 Hours Self-Healing
Industrial Fan Capacitor are essential components for the effective operation of air conditioning systems. They help to maintain the correct phase shift and power factor, and are responsible for providing the necessary start-up boost of current required to start the fan motor.
Applications
This product is made of high-quality materials, and it has good heat resistance and insulation performance. It is easy to install and use, and its temperature range is wide, which can meet the needs of different environments. It has reliable performance and excellent quality, and is widely used in air conditioners, refrigerators, electric fans, refrigeration and other electrical products.
Basic Info.(Techical Parameters)
|
Operation temperature range |
-40℃～+85℃ (40/85/21) |
|
|
Rated Voltage |
250V.AC |
|
|
Capacitance Range |
5.0UF |
|
|
Capacitance tolerance |
±5% |
|
|
Lifetime |
10000 hours | |
|
Flammability |
UL94V-0 |
|

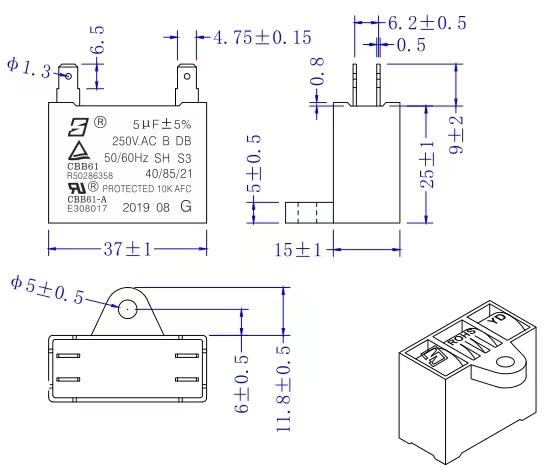

Outline Drawing(37mm=1-29/64in,15mm=19/32in,25mm=63/64in)
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Workshop and Transport
Why Choose XWD-XD Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
