CBB61 Fan Capacitor 370V 6.0UF Motor Run Capacitor Protected 10000AFC Front Lug
CBB61 250V 6.0UF Air Conditioner Capacitor -40℃~70℃
The Air Conditioner Fan Capacitor is an essential part of an air conditioner. It is designed to provide consistent power for the fan motor. This capacitor features a plastic triangle with location hole/straight iron ear/bent iron ear installation type for easy installation. It has a lifetime of up to 3000 hours. The rated frequency is 50/60Hz for reliable operation. It has a capacitance of 6.0uF, and is made of 94-V0 retardant plastic box and epoxy filling for superior durability.
Applications
It has the advantages of high voltage resistance, strong ability to withstand large current impact and high safety.Used for fans, air conditioners, water pumps, etc.
Basic Info.(Techical Parameters)
|
Operation temperature range |
-40℃～+70℃ (40/70/21) |
|
|
Rated Voltage |
250V.AC |
|
|
Capacitance Range |
6.0UF |
|
|
Capacitance tolerance |
±5% |
|
|
Flammability |
UL94V-0 |
|

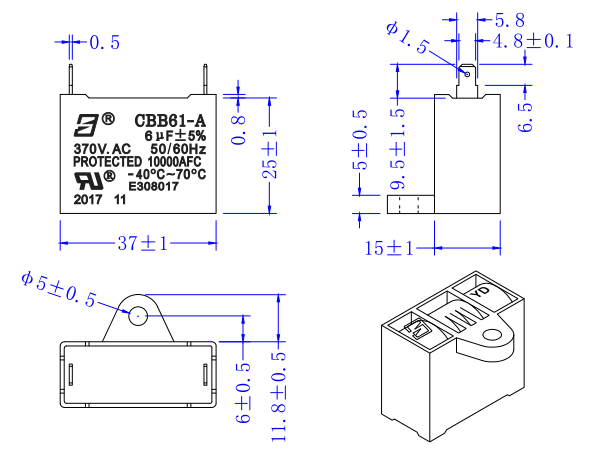

Outline Drawing(37mm=1-29/64in,15mm=19/32in,25mm=63/64in)
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Workshop and Transport
Why Choose XWD-XD Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
