CBB61 AC Starting Celling Fan Capacitor 250V 8.0UF C-Class RoHS Film Capacitor
CBB61 250V 8.0UF Air Conditioner Capacitor With Straight Iron Ear
Air Conditioner Fan Capacitor is an essential component part of air conditioner, realizing the purpose of air conditioning. This air conditioner part has excellent performance, with ±5% tolerance, 2.5uF capacitance, 50/60Hz rated frequency, and two quick-connect terminals for connection. The air conditioner fan capacitor is capable of providing reliable power to the air conditioner.
Applications
It has the advantages of high voltage resistance, strong ability to withstand large current impact and high safety.Used for fans, air conditioners, water pumps, etc.
Basic Info.(Techical Parameters)
|
Operation temperature range |
-40℃～+85℃ (40/85/21) |
|
|
Rated Voltage |
250V.AC |
|
|
Capacitance Range |
8.0UF |
|
|
Capacitance tolerance |
±5% |
|
|
Flammability |
UL94V-0 |
|
| Lifetime | 3000 Hours | |

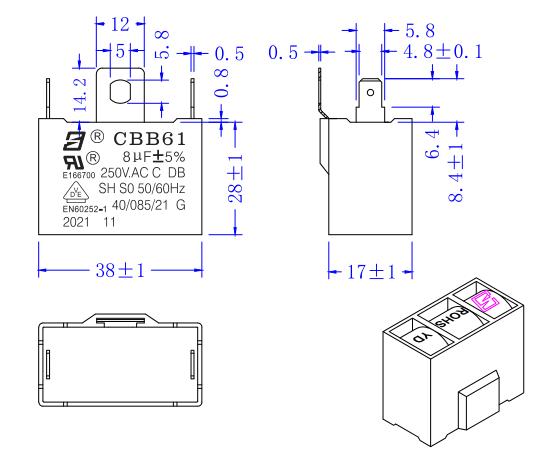

Outline Drawing(38mm=1-1/2in,17mm=43/64in,28mm=1-7/64in)
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Workshop and Transport
Why Choose XWD-XD Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
