CBB61 250V 2.0UF AC Motor Capacitor Running Capacitor 50 / 60HZ Celling Fan Staright Lug
CBB61 250V 2.0UF Black Air Conditioner Fan Capacitor With Two Quick-Connect Terminals
Our air conditioner fan condenser capacitor is reliable, durable, and efficient. It is constructed of high-quality materials and components for maximum performance and long-lasting service. It is easy to install and maintenance-free. It is also highly resistant to corrosion and is designed to withstand extreme temperatures.
Applications
It has the advantages of high voltage resistance, strong ability to withstand large current impact and high safety.Used for fans, air conditioners, water pumps, etc.
Basic Info.(Techical Parameters)
|
Rated frequency |
50/60Hz |
|
|
Rated Voltage |
250V.AC |
|
|
Capacitance Range |
2.0UF |
|
|
Capacitance tolerance |
±5% |
|
|
Withstand voltage test |
1.75Un 2S | |
|
Flammability |
UL94V-0 |
|
|
Operating temperature range |
-25℃~70℃(-25/70/21) | |

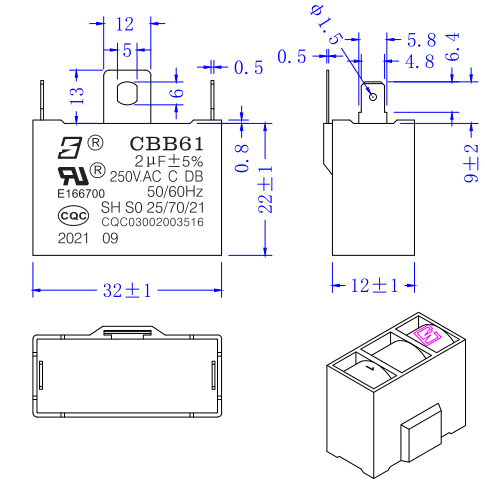

Outline Drawing(32mm=1-17/64in,12mm=15/32in,22mm=55/64in)
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Workshop and Transport
Why Choose XWD-XD Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
