CBB61 370V 2.0mfd Line Length 50 Ceiling Fan Capacitor With Bent Iron Ear
CBB61 370V 2.0UF Line Length 50mm Ceiling Fan Capacitor With Bent Iron Ear
Ceiling Fan Capacitor is a grade C-Class product with a line length of 50mm, providing a long life of up to 3000 hours. It is an original manufacturer, ODM, agency, or retailer supplied product, giving customers a wide range of choices.
The Ceiling Fan Capacitor has a number of features such as an optimized capacitance range for better performance, superior heat dissipation for longer life, high ripple current. It is also UL approved.
Applications
It has the advantages of high voltage resistance, strong ability to withstand large current impact and high safety.Used for fans, air conditioners, water pumps, etc.
Basic Info.(Techical Parameters)
|
Rated frequency |
50/60Hz |
|
|
Rated Voltage |
370V.AC |
|
|
Capacitance Range |
2.0UF |
|
|
Capacitance tolerance |
±5% |
|
|
Withstand voltage test |
1.5Un 2S | |
|
Flammability |
UL94V-0 |
|
|
Operating temperature range |
Max Temp 70℃ | |

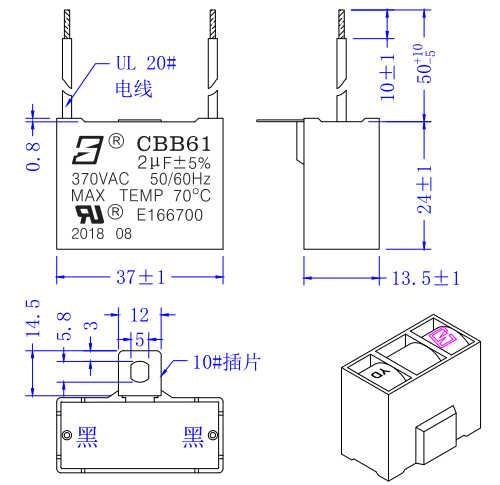

Outline Drawing(37mm=1-29/64in,13.5mm=17/32in,24mm=15/16in)
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Workshop and Transport
Why Choose XWD-XD Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
