CBB61 AC Starting Celling Fan Capacitor 370V 2.0UF Film Capacitor 250 Terminal
CBB61 370V 2.0UF Two Quick-Connect Terminals Air Conditioner Fan Capacitor With Bent Iron Ear
Air conditioner fan Capacitor is a device used in air conditioner application. It has ±5% tolerance. It also has two quick-connect terminals. Moreover, its operating temperature ranges from max temp 70℃, making it suitable for various air conditioner applications.
Applications
It has the advantages of high voltage resistance, strong ability to withstand large current impact and high safety.Used for fans, air conditioners, water pumps, etc.
Basic Info.(Techical Parameters)
|
Rated frequency |
50/60Hz |
|
|
Rated Voltage |
370V.AC |
|
|
Capacitance Range |
2.0UF |
|
|
Capacitance tolerance |
±5% |
|
|
Withstand voltage test |
1.5Un 2S | |
|
Flammability |
UL94V-0 |
|
|
Operating temperature range |
Max Temp 70℃ | |

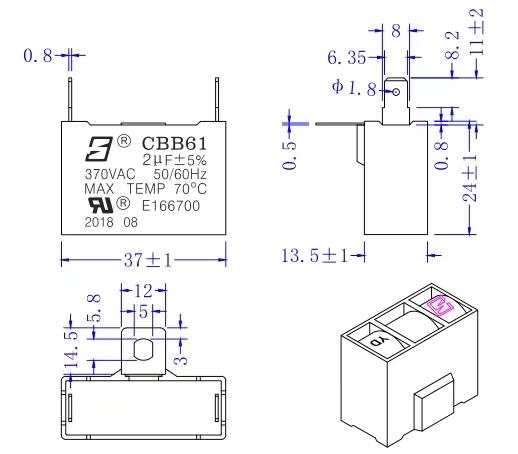

Outline Drawing(37mmm=1-29/64in,13.5mm=17/32in,24mm=15/16in)
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Workshop and Transport
Why Choose XWD-XD Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
