CBB61 370V 3.0UF AC Starting Fan Capacitors 250 Terminal Max Temp 70 ℃ Bend Cutting Lug
CBB61 370V 3.0UF 250 Terminal Air Conditioner Fan Capacitor With Bent Iron Ear
Air conditioner fan capacitors usually consist of a metal foil that is folded into multiple layers and soaked in an electrolyte. When a capacitor is charged, the metal foil collects the charge, while the electrolyte blocks the flow of the charge, thus storing the charge. When a capacitor is discharged, the metal foil releases an electrical charge, which provides electricity.
Applications
It is widely used in air conditioner, freezer, and other AC motor related applications.
Basic Info.(Techical Parameters)
|
Rated frequency |
50/60Hz |
|
|
Rated Voltage |
370V.AC |
|
|
Capacitance Range |
3.0UF |
|
|
Capacitance tolerance |
±5% |
|
|
Withstand voltage test |
1.5Un 2S | |
|
Flammability |
UL94V-0 |
|
|
Operating temperature range |
Max Temp 70℃ | |

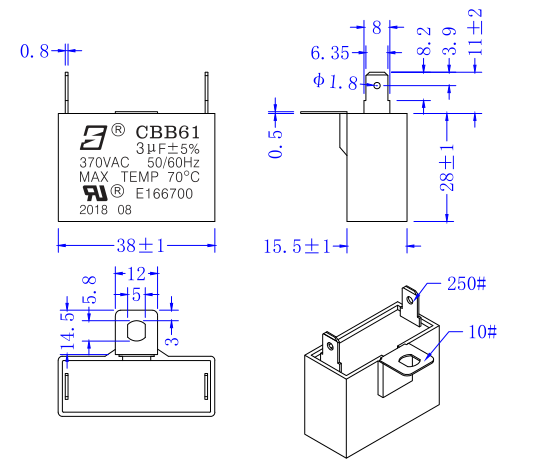

Outline Drawing(38mm=1-1/2in,15.5mm=39/64in,28mm=1-7/64in)
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Workshop and Transport
Why Choose XWD-XD Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
