Fan motor run capacitor 7.5UF 370V CBB61 Capacitor S3 Protected 10000AFC
CBB61 370V 7.5UF 250 Terminal Air Conditioner Fan Capacitor With Straight Iron Ear
An air conditioner fan capacitor is an element used in an air conditioner fan to store charge and provide electricity, usually consisting of two metal foils and a layer of insulating medium, which can store the charge and release it when needed, so that the fan motor can operate normally.
Applications
This air conditioner fan capacitor is suitable for many applications such as Industrial air conditioner capacitors and household air conditioner capacitors.
Basic Info.(Techical Parameters)
|
Rated frequency |
50/60Hz |
|
|
Rated Voltage |
370V.AC |
|
|
Capacitance Range |
7.5UF |
|
|
Capacitance tolerance |
±5% |
|
|
Withstand voltage test |
1.5Un 2S | |
|
Flammability |
UL94V-0 |
|
|
Operating temperature range |
Max Temp 70℃ | |

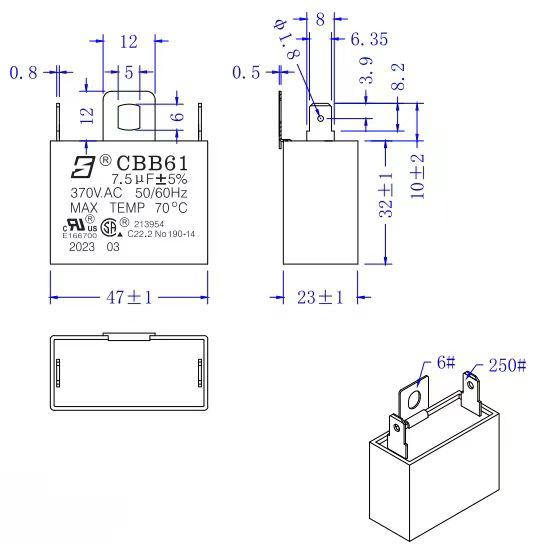

Outline Drawing(47mm=1-27/32in,23mm=29/32in,32mm=1-17/64in)
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Workshop and Transport
Why Choose XWD-XD Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
