CBB61 370V 8.0UF Fan Capacitor 187 Terminal Motor Run Capacitor Max Temp 70 ℃ RoHS
CBB61 370V 8.0UF 187 Terminal Air Conditioner Fan Capacitor With Straight Iron Ear RoHS
The main function of air conditioning fan capacitors is to store electrical charge and provide power, so that the fan motor can start and run normally. When the air conditioner fan motor starts, the capacitor stores the charge and releases it while the motor is running to provide enough power to drive the motor. If the capacitor is damaged or fails, the motor may not start or function properly, causing the air conditioner fan to not work properly.
Applications
This air conditioner fan capacitor is suitable for many applications such as Industrial air conditioner capacitors and household air conditioner capacitors.
Basic Info.(Techical Parameters)
|
Rated frequency |
50/60Hz |
|
|
Rated Voltage |
370V.AC |
|
|
Capacitance Range |
8.0UF |
|
|
Capacitance tolerance |
±5% |
|
|
Withstand voltage test |
1.5Un 2S | |
|
Flammability |
UL94V-0 |
|
|
Operating temperature range |
Max Temp 70℃ | |

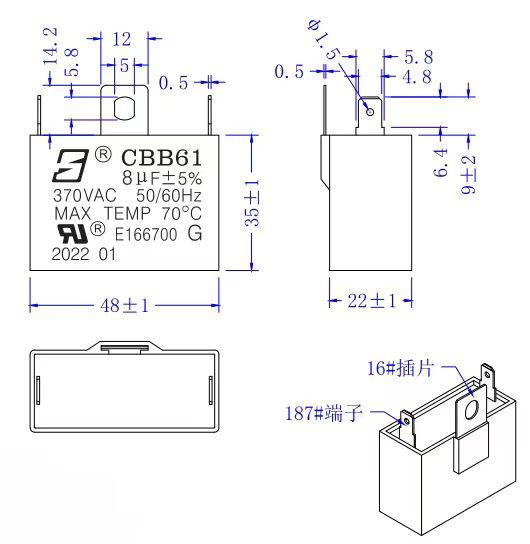

Outline Drawing(48mm=1-57/64in,22mm=55/64in,35mm=1-3/8in)
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Workshop and Transport
Why Choose XWD-XD Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
