CBB61 450V 2.5UF 187 Terminal Film Air Conditioner Fan Capacitor
CBB61 450V 2.5UF Air Conditioner Fan Capacitor 187 Terminal Film Capacitor
Air conditioner fan capacitor has been certified by UL/VDE/CQC/RoHS. It has a tolerance of ±5%, size of 38*18*29, operating temperature of -25℃~+70℃. It is suitable for operation in rated frequency of 50/60Hz. Air conditioner fan capacitor is reliable and durable.
Applications
It has the advantages of high voltage resistance, strong ability to withstand large current impact and high safety.Used for fans, air conditioners, water pumps, etc.
Basic Info.(Techical Parameters)
|
Rated frequency |
50/60Hz |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
2.5UF |
|
|
Capacitance tolerance |
±5% |
|
|
Withstand voltage test |
2.0Un 2S | |
|
Flammability |
UL94V-0 |
|
|
Operating temperature range |
-25~+70℃(25/70/21) | |

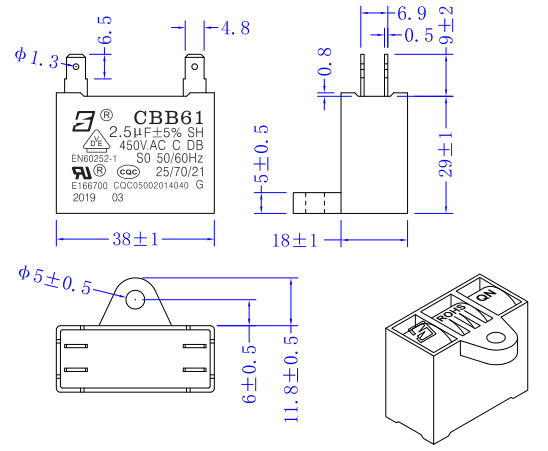

Outline Drawing(38mm=1-1/2in,18mm=45/64in,29mm=1-9/64in)
