CBB61 450V 10UF 100 Line Length Ceiling Fan Capacitor Plastic Triangles With Locating Holes Are On Both Sides.

    CBB61 film capacitor is a machine suitable for the starting and running of single-phase motors with a frequency of 50HZ AC power supply, and can also play a role in speed regulation of the motor. It is characterized by plastic shell encapsulation, good appearance consistency; small high frequency loss, suitable for large current; high insulation resistance, good self-healing and long life. It is an important supporting component for electric fans, range hoods, air-conditioning fans, and bread machines.


Applications

   It has the advantages of high voltage resistance, strong ability to withstand large current impact and high safety.Used for fans, air conditioners, water pumps, etc.

Basic Info.(Techical Parameters)

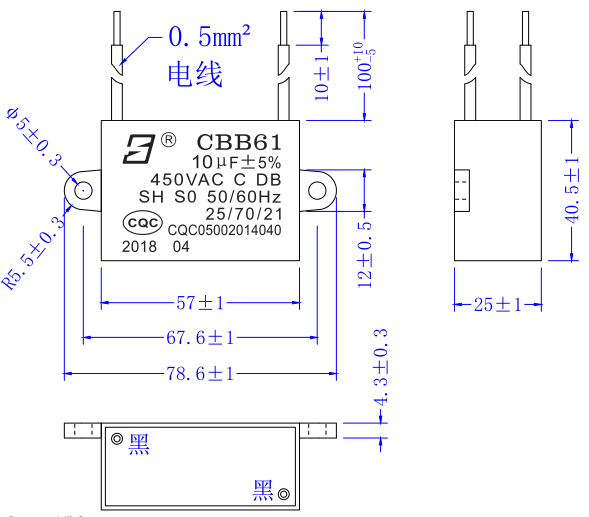

Outline Drawing(57mm=2-1/4in,25mm=63/64in,40.5mm=1-19/32in)

Manufacturing Process Flow

1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection

8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery

Workshop and Transport

Why Choose XWD-XD Capacitors?

√ One of the largest metalized polypropylene film capacitor manufacturers in China;

√ Fast lead time due to fully automatic production and vertical raw materials supply;

√ With world-class lab center, strong R&D research and self-owned film metallization technology;

√ Highly consistent quality products by strictly adhering to ISO and IATF16949;

√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
