CBB61 450V 4.0mfd 100mm Line Length Ceiling Fan Capacitor Plastic Triangles With Locating Holes Are On Both Sides
CBB61 450V 4.0UF 100mm Line Length Ceiling Fan Capacitor Plastic Triangles With Locating Holes Are On Both Sides
Ceiling Fan Capacitor is mainly used in the fan, and other motor applications. It is UL, VDE, CQC certified, and has a capacitance range from 2.5uF to 100uF, with a rated frequency of 50/60Hz. Besides, it can work in a wide temperature range from -25℃ to +70℃. Ceiling Fan Capacitor ensures reliable performance, safety and durability for customers.
Applications
Ceiling Fan Capacitor is widely used in many applications, such as air compressor, washing machines, fans, water pumps, range hoods, air conditioner, electric tools, microwave ovens, etc. It can provide efficient and stable performance.
Basic Info.(Techical Parameters)
|
Rated frequency |
50/60Hz |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
4.0UF |
|
|
Capacitance tolerance |
±5% |
|
|
Withstand voltage test |
2.0Un 2S | |
|
Flammability |
UL94V-0 |
|
|
Operating temperature range |
-25~+70℃(25/70/21) | |

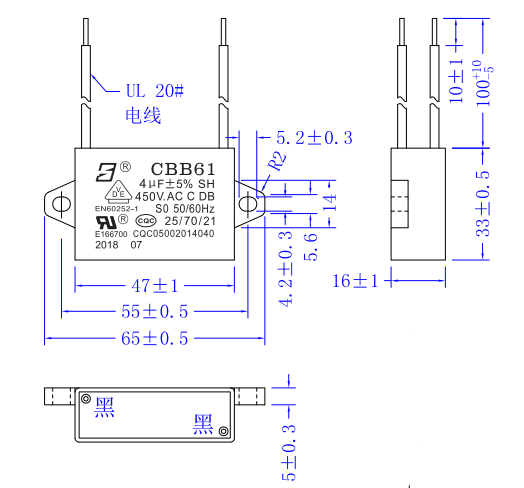

Outline Drawing(47mm=1-27/32in,16mm=5/8in,33mm=1-7/32in)
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Workshop and Transport
Why Choose XWD-XD Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
