CBB61 450V 4.5UF 100 Line Length Ceiling Fan Capacitor Plastic Triangles With Locating Holes Are On Both Sides

    The CBB61 capacitor is a flame-retardant epoxy resin encapsulated in a PBT clinker shell by winding polypropylene film as a medium. Motor running capacitors are mostly used in AC motors. The role is to maintain the operation of the motor. Plastic square shell, the leading end is mostly lead wire, pin type or metal insert.
    This capacitor use polypropylene film or reticulation safety film(coated by Zinc and Aluminum)as a dielectric,encapsulated by retardant epoxy resin and square ABS plastic.It,s small size,reliable and safe,also has stable electric and long working life.

Applications

   Ceiling Fan Capacitor is widely used in many applications, such as air compressor, washing machines, fans, water pumps, range hoods, air conditioner, electric tools, microwave ovens, etc. It is an ideal starting device for fans which can provide efficient and stable performance.

Basic Info.(Techical Parameters)

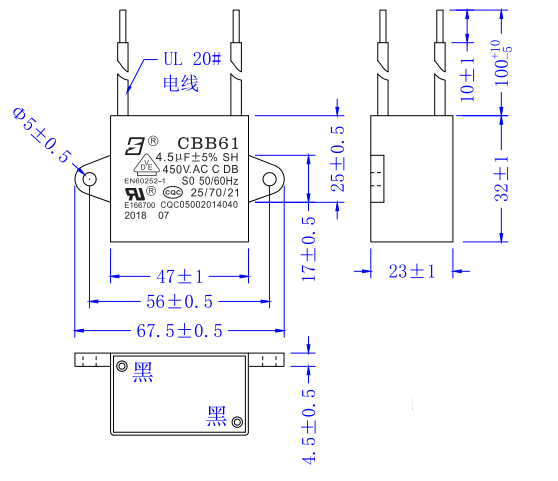

Outline Drawing(47mm=1-19/64in,23mm=29/32in,32mm=1-17/64in)

Manufacturing Process Flow

1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection

8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery

Workshop and Transport

Why Choose XWD-XD Capacitors?

√ One of the largest metalized polypropylene film capacitor manufacturers in China;

√ Fast lead time due to fully automatic production and vertical raw materials supply;

√ With world-class lab center, strong R&D research and self-owned film metallization technology;

√ Highly consistent quality products by strictly adhering to ISO and IATF16949;

√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
