Ac Motor Start Capacitor CBB61 450V 7.0UF Four Quick-Connect Teriminals Straight Lug
Ac Motor Start Capacitor CBB61 450V 7.0UF Four Quick-Connect Teriminals Straight Lug
This Industrial Fan Capacitor is rated for 50/60Hz and has an operating temperature range of -40℃~+85℃. It has a 7.0uF capacitance and is Grade B-Class. It has four quick-connect terminals for connection. This Industrial Fan Capacitor can help to boost the start-up performance of the air conditioner and ensure a long-lasting life span. It is an essential product for air conditioner.
Applications
Industrial Fan Capacitor is widely used in many applications, such as air compressor, washing machines, fans, water pumps, range hoods, air conditioner, electric tools, microwave ovens, et.
Basic Info.(Techical Parameters)
|
Rated frequency |
50/60Hz |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
7.0UF |
|
|
Capacitance tolerance |
±5% |
|
|
Withstand voltage test |
2.0Un 2S | |
|
Flammability |
UL94V-0 |
|
|
Operating temperature range |
-40~+85℃(40/85/21) | |
| Operation temperature range | -40℃~+85℃ |
| Rated Voltage | 110V.AC-630V.AC |
| Capacitance Range | 0.1uF~20uF |
| Capacitance tolerance | ±5% (J),±10%(K) |
| Dissipation factor | tgō0.001(at 100Hz) |
| Withstand voltage Between terminals | 2.0Un(10s) |
| Withstand voltage Terminals to case | 2000V.AC |
| Insulation resistance | CXRs>5000s |
| Flame retardation | UL94V-0 |
| Referenced standard | IEC 6025 UL810 GB3667-2005 |

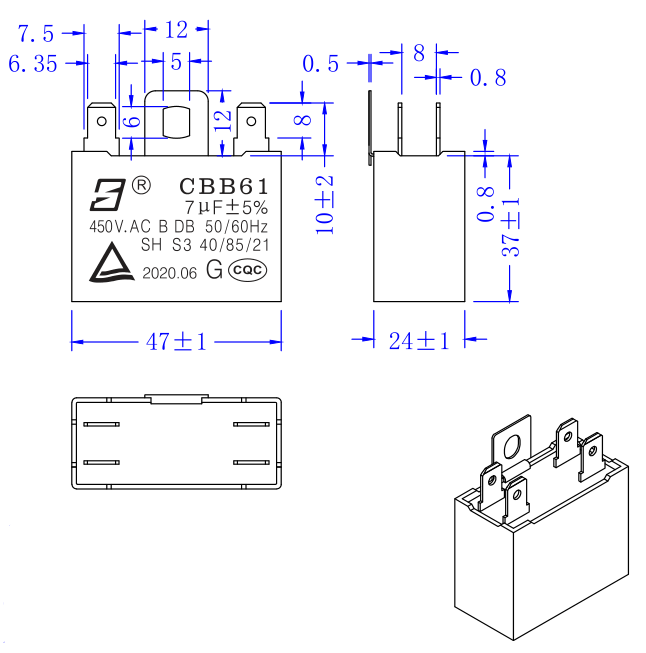

Outline Drawing(47mm=1-27/32in,24mm=15/16in,37mm=1-29/64in)
