AC run motor start capacitor CBB61 450V 8.0UF Bent Iron Ear B-Class S3 Fan Capacitor
AC run motor start capacitor CBB61 450V 8.0UF Bent Iron Ear B-Class S3 Fan Capacitor
CBB61 adhesive uses a metallized zinc-aluminum film with thickened edges as the electrode and medium. Then inject flame-retardant epoxy resin into the ABS or PBT cube plastic shell. This product has small size and good performance. The product grade is B level and the use consumes 10,000 hours.
Applications
Scope of application: Suitable for starting and running single-phase motors with relatively small power supply from AC power supply with a frequency of 50Hz/60Hz, such as air-conditioning power distribution, electric fans, exhaust fans, etc.
Basic Info.(Techical Parameters)
|
Rated frequency |
50/60Hz |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
8.0UF |
|
|
Capacitance tolerance |
±5% |
|
|
Withstand voltage test |
2.0Un 2S | |
|
Flammability |
UL94V-0 |
|
|
Operating temperature range |
-40~+85℃(40/85/21) | |

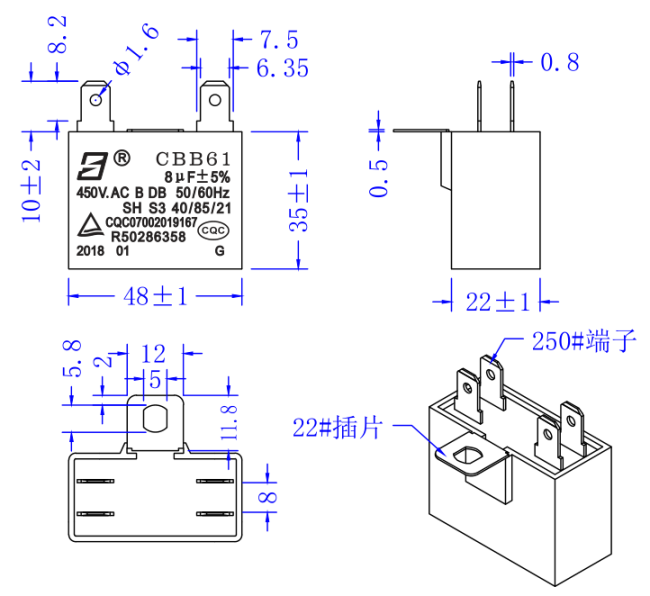

Outline Drawing
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Workshop and Transport
Why Choose XWD Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
