CBB61 450v 10UF Air Conditioner Fan Capacitor Terminal Type Capacitor 10000 Hours
CBB61 450v 10UF Air Conditioner Fan Capacitor Terminal Type Capacitor 10000 Hours
This capacitor uses a metallized zinc-aluminum film with thickened edges as the electrode and dielectric. Then fill the ABS or PBT cube plastic shell with flame-retardant epoxy resin. This product has small size, good performance, product grade is B, and has a service life of 10,000 hours.
Applications
CBB61 is used for starting box operation of 50/60Hz single-phase AC motor, the product has small size, long life, high proportion characteristics, with self-healing performance, and is widely used in fans, ceiling fans, floor fans, range hoods, industrial air, blowers to start and operate.
Basic Info.(Techical Parameters)
|
Rated frequency |
50/60Hz |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
10UF |
|
|
Capacitance tolerance |
±5% |
|
|
Withstand voltage test |
2.0Un 2S | |
|
Flammability |
UL94V-0 |
|
|
Operating temperature rang |
-40℃~+85℃(40/85/21) | |

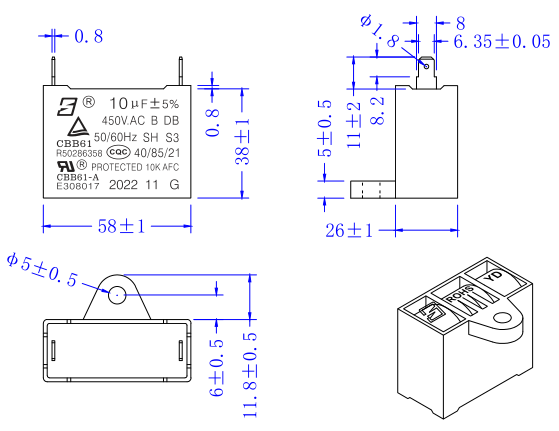

Outline Drawing(58mm=2-9/32in,26mm=1-1/32in,38mm=1-1/2in)
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Workshop and Transport
Why Choose XWD-XD Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
