CBB61 450v 10uf Ceiling Fan Capacitor Plastic Triangle With Location Hole

    Ceiling Fan Capacitor is designed according to UL/CQC standards, with tolerance of ±5%, rated voltage of 450VAC and rated frequency of 50/60Hz. It can be installed in three types, plastic triangle with location hole, bent iron ear with location hole and straight iron ear with location hole. The Ceiling Fan Capacitor is supplied by original manufacturer, ODM, agency and retailer.
    1. Widely applied to the starting and running of AC single-phase motors at 50Hz/60Hz frequency power.
    2. Self-healing property
    3. Good stability and reliability

Applications


   Widely used in many applications, such as air compressor, washing machines, fans, water pumps, range hoods, air conditioner, electric tools, microwave ovens, et.

Basic Info.(Techical Parameters)

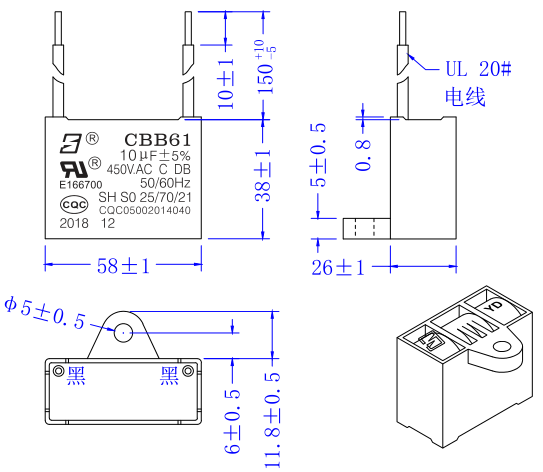

Outline Drawing(58mm=2-9/32in,26mm=1-1/32in,38mm=1-1/2in)



Manufacturing Process Flow

1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection

8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery


Workshop and Transport



Why Choose XWD-XD Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;

√ Fast lead time due to fully automatic production and vertical raw materials supply;

√ With world-class lab center, strong R&D research and self-owned film metallization technology;

√ Highly consistent quality products by strictly adhering to ISO and IATF16949;

√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
