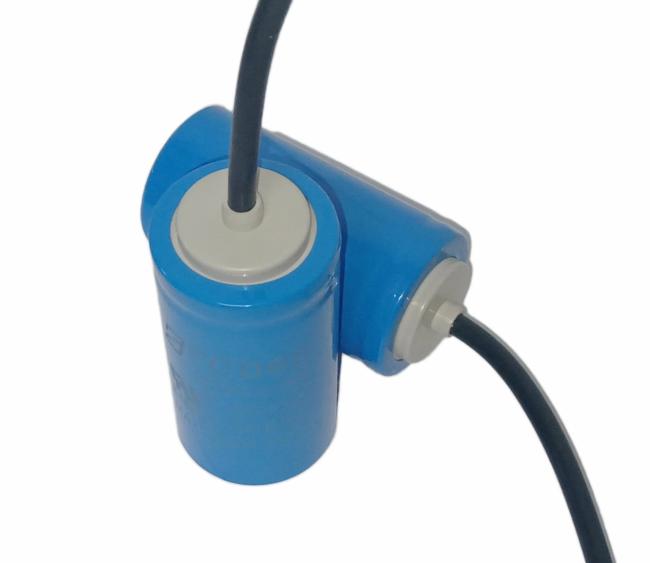

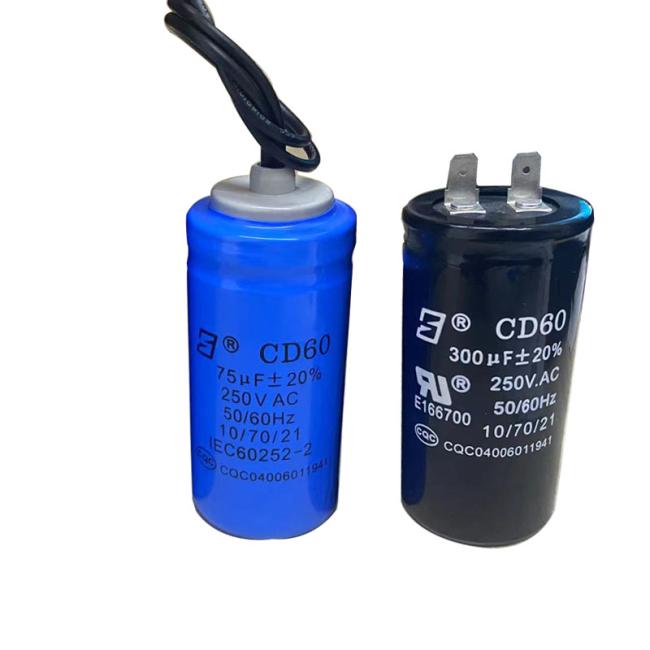

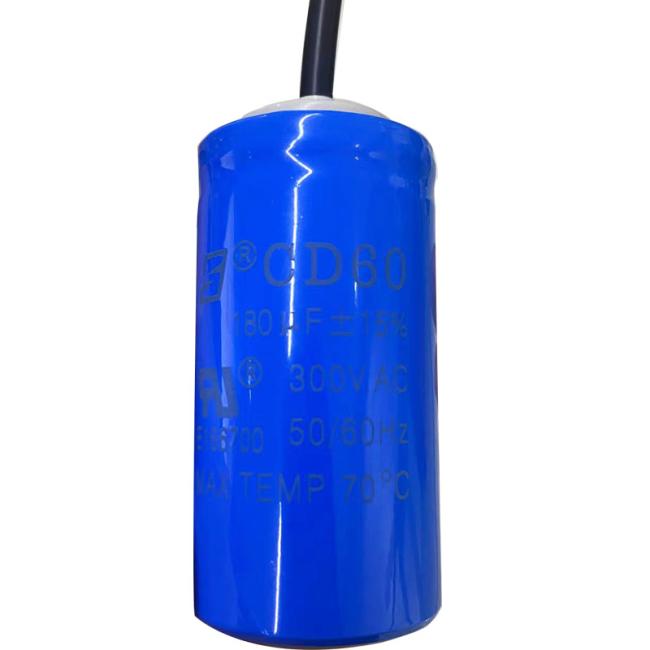

Cd60 180Uf AC Motor Metalized Polypropylene Film Capacitor Water Pump Capacitor
Product Description:
CD60 Water Pump Start Capacitor Help To Start Big Power Single-Phase Ac Motors With Flame Retardant Plastic Or Aluminum Can
As we all know, single-phase AC motor is not like three-phase motor, it can turn up when given electricity, it needs a starting torque to rotate, and the clockwise and anti-clockwise of this torque determines the motor's steering, there are many ways to start, one of them is capacitor start, it is customarily called starting capacitor, single-phase motor needs it to turn up smoothly.However, some single-phase motors have not only one capacitor, some motors have two capacitors, why is that? Because some motors are equipped with a starting capacitor and a running capacitor.
Features:
◾ Small dimension
◾ Big capacitance
◾ Light weight
◾ High stability
Application:
Apply to 50/60Hz single phase AC motors for starting big power. It is widely used to heat pump, air conditioning, freezers, refrigerators etc. When motor starting, it provide for higher torque.
Technical Specification:
| Operation temperature range | -25℃～+70℃ | |
| Rated Voltage | 110V.AC~330V.AC | |
| Capacitance Range | 20uF~600uF | |
| Capacitance tolerance | ±15% (L) , ±20% (M) , -10~30% | |
| Tangent of loss angle(20℃) | ≤15% (at 100Hz ) | |
| Flammability | UL94V-0 | |
| Life Class |
30000 times |
|
| Withstand voltage | between terminals | 1.2Un / 2S (UL) |
| between terminals and case | ≥2000VAC / 2S | |
| Class of safety protection | CQC / UL | |
