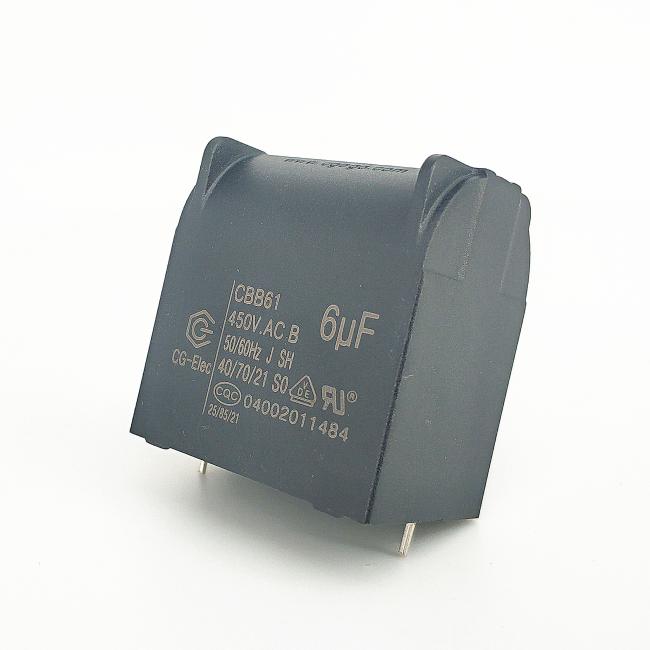

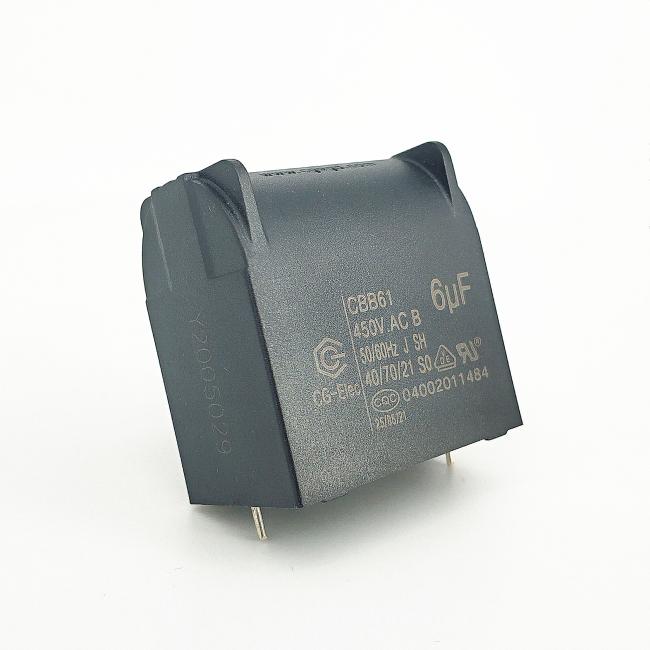

CBB61 450V 6UF Air Conditioner Fan Capacitor Home AC Capacitor 4 pins Black Epoxy
CBB61 450V 6mfd Air Conditioner Fan Capacitor Tinned Copper Pin Black Epoxy
A capacitor is an electronic component that can store electrical charge, and in an air conditioning compressor, the main role of the capacitor is to provide the starting current to the compressor. When the air conditioner is turned on, the capacitor discharges instantaneously, providing a high current to start the compressor. Once the compressor is running normally, the capacitor will stop discharging until it is used again the next time it is turned on.
Applications
It has the advantages of high voltage resistance, strong ability to withstand large current impact and high safety.Used for fans, air conditioners, water pumps, etc.
Basic Info.(Techical Parameters)
|
Rated frequency |
50/60Hz |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
6.0UF |
|
|
Capacitance tolerance |
±5% |
|
|
Withstand voltage test |
2.0Un 2S | |
|
Flammability |
UL94V-0 |
|
|
Operating temperature range |
-40~+70℃(40/70/21) | |
Outline Drawing
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Workshop and Transport
Why Choose XWD-CG Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
