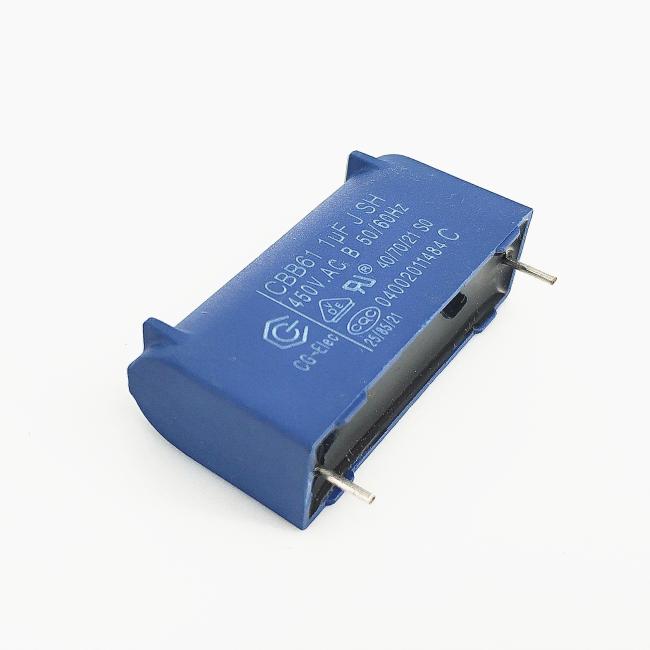

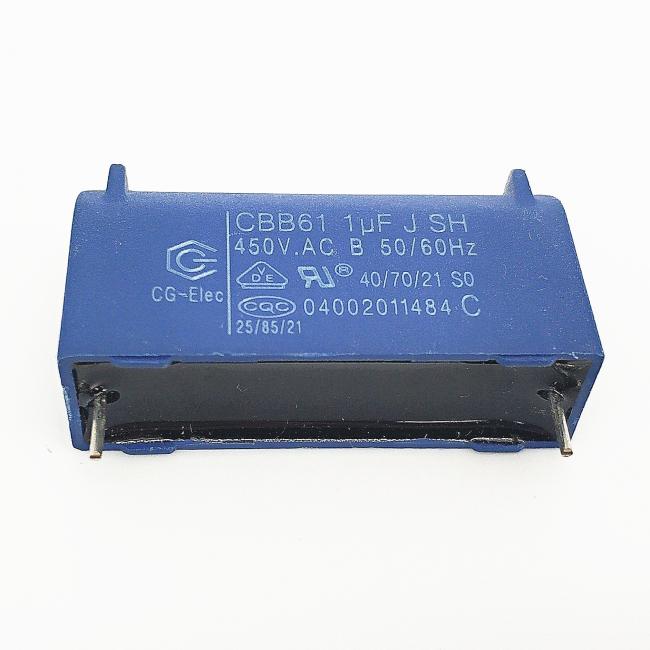

Air Conditioner Run Capacitor CBB61 450V 1UF Film Capacitor Two Pins B-Class roHs
CBB61 450V 1mfd Air Conditioner Fan Capacitor Tinned Copper Pin 10000 Hours
The air conditioner capacitor starts the various air conditioner motors and keeps them going by building up a store of electricity that can be used to provide continuous power. In this role, it acts as a sort of temporary battery so that there is a constant supply of power to keep the system running smoothly.
Applications
It has the advantages of high voltage resistance, strong ability to withstand large current impact and high safety.Used for fans, air conditioners, water pumps, etc.
Basic Info.(Techical Parameters)
|
Rated frequency |
50/60Hz |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
1.0UF |
|
|
Capacitance tolerance |
±5% |
|
|
Withstand voltage test |
2.0Un 2S | |
|
Flammability |
UL94V-0 |
|
|
Operating temperature range |
-40~+70℃(40/70/21) | |
Outline Drawing
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Workshop and Transport
Why Choose XWD-CG Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
